DESCRIPTION

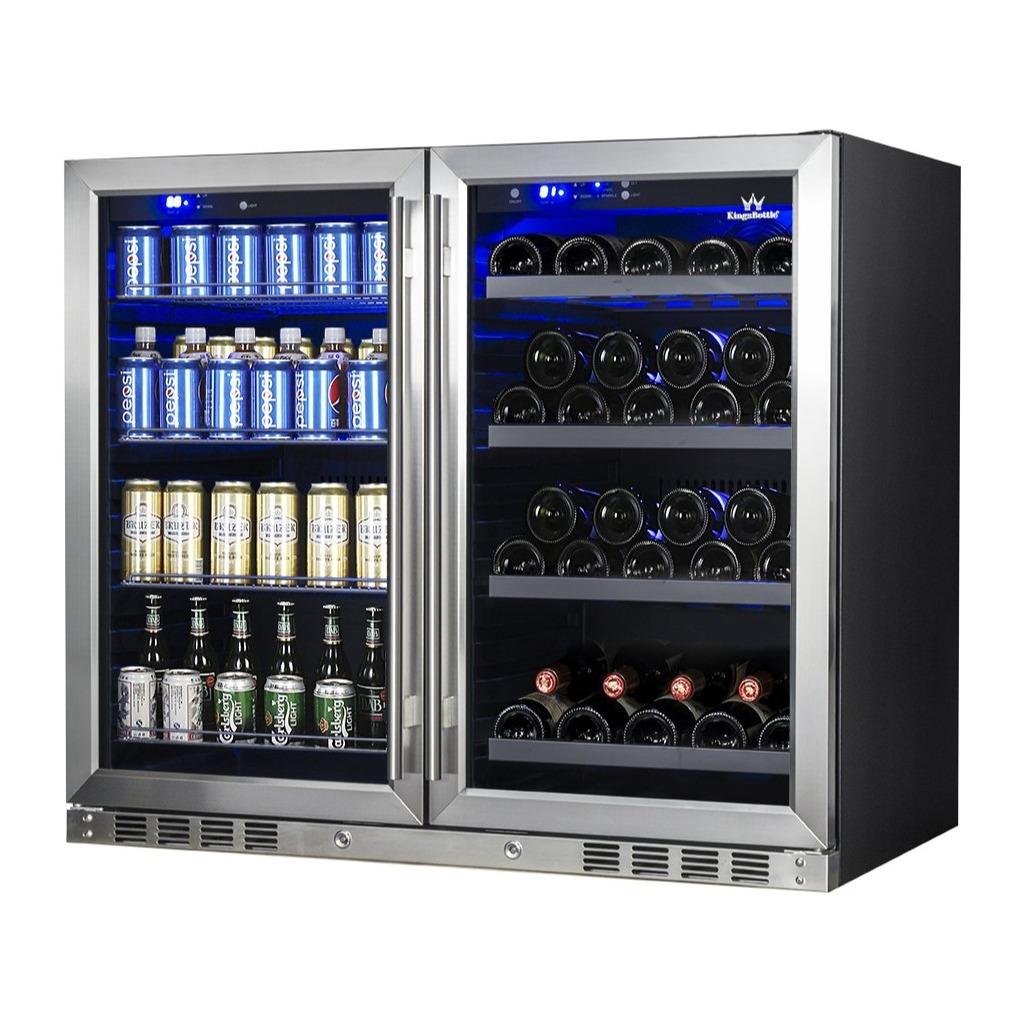

It is easy to see why this dual-zone double door beverage center, under the counter beer and wine cooler combo KBU28LRX with fully adjustable shelves is our best seller. Ideal for any bar, restaurant or home, our wine cooler and beverage center comfortably holds and perfectly chills all of your favorite wines, beers, spirits and fizzy drinks.
The adjustable temperature range is 39-64°F for each compartment. With additional options of wooden shelves or metal shelves, you could convert this unit to be both sides for wine or beverage only.
Whatever your beverage chilling needs might be, this brilliant unit can meet all of your needs with world-class features.
Key Features
- The charged tempered safety glass is coated with two layers of UV protection to keep your wine safe from both incandescent and fluorescent light sources.
- The attractive stainless steel glass door hardware on the KBU28LR beer and wine cooler is easy to clean and maintain.
- The quiet and durable vibration-free cooling compressor combines with our state-of-the-art fan to distribute cool air throughout the cabinet, ensuring temperature uniformity in the entire cooler.

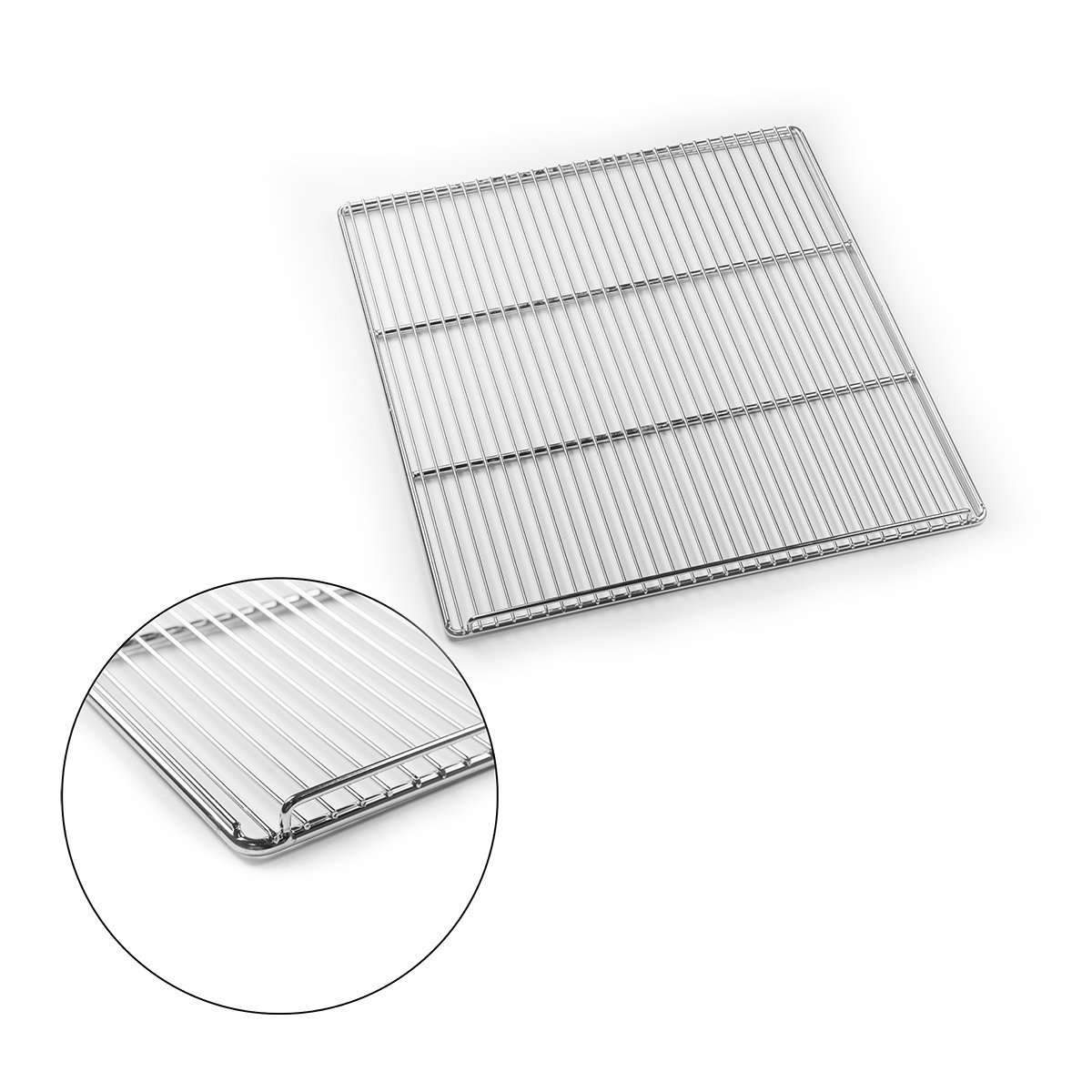

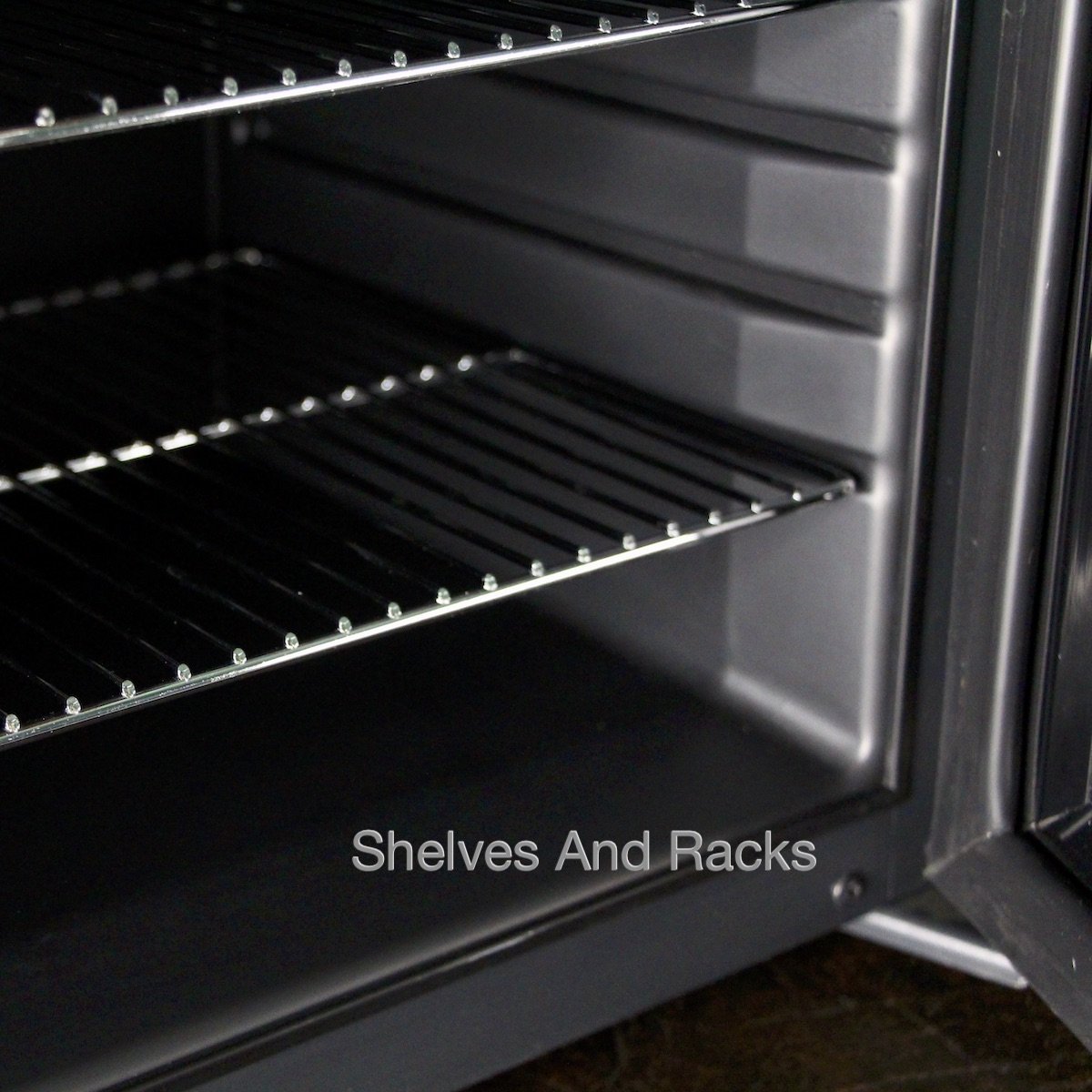

- Includes four strong, non-warping hardwood designer shelves and four chromed shelves included. Both shelves and racks are easy to remove to tailor your wine cooler and beverage center storage needs.
- High-end digital display controllers.
- Locks with a spare key to protect your stock.
- Unique front-vented heat dispersion systems that allow each cellar to be built into cabinets with minimal clearance.
- Interior LEDs.
General Info:
- Volume: 7.76 CF (220 Liter)
- Capacity: 100 Cans + 28 Wine Bottles
- Installation: Built-in or free standing, Front Venting
- Shelf Configuration: 4 Wood Shelves, 4 Chromed Steel Shelves, fully adjustable distances between shelves
- Adjustable Temperature Range: 39-64°F for each compartment
- At Min/Max Room Temperatures: 32-100°F
- Noise Level in Decibels: <42dB
Electrical:
- Rated Power Input: 80 Watts
- Rated Current: 1.1 A
- Refrigerant: R600A (70g)
- Energy Consumption: 0.8Kw*h/24h
- Energy Efficiency Standard Compliance: CEC, DOE
Dimensions:
- Net Weight: 181 lb (82kg)
- Unit Size: 38.8"Wx23.2"Dx34.0"H; Depth 23.2" excluded handle, Depth 25.5" included handle.
- Additional minimum space requirements for built-in applications: Not required. But recommend 0.5" either side, 0.25" on top, 0.5" at the rear
USER INSTRUCTIONS
USER MANUAL & VIDEO
Q&A
QUESTIONS & ANSWERS
-
Can the 28RL be used for red wine and white wine instead of beer? Is storage 28 bottles each cabinet? It\'s a dual temp unit, right?
Hi Blake, Thanks for your questions. Yes, the 28RL is a dual temp unit, the adjustable temperature ranges from 34 to 64F for each side, you can store beer, white or red wine in any cabinet. The unit designed as a beer and wine combo, it came with metal shelves in the left compartment, and wood shelves in the right. If you want to store white and red only, we need to take out the metal shelves and replace with wood one. That's not a problem, we would like to help you on this, but please leave a note in the order, so our shipping department will take care of this for you. --- from Kingsbottle Team
-
How much space is needed in front of the unit for airflow? I want to put this behind a door.
This is a front-venting design, no space required around the cabinet, but need to make sure there is enough space in front for air venting.
-
What are all of the dimension W L and H?
Unit Size : 38.8"Wx23.2"Dx34.2"H ( 985W x590D x 860H mm), thank you!
-
Is this unit only under counter or can it be free standing?
Thank you for asking. This unit is front-venting built-in design, and it is beautiful enough to be free standing as well. ---From KingsBottle
-
Can the LED light color be changed?
sorry for late reply.
The LED light color is blue only. -
What does it mean that it is “sold” but you are accepting pre-orders? From the reviews it looks like this unit has beeen around for a while.
Hi Darryl,
Thanks for your questions.
When an item is out of stock, we will mark it as SOLD.
A container with this item arrives today, but they are all sold. The pre-order now will be on the waiting list for the next container which will arrive by the end of January.
Hope this will help. -
Our space is 39” wide. The specs say you need a minimum of 39.6 inches. Can you explain why? Or would 39 inches width be sufficient?
Please refer to the user manual on the tab "user instruction" on the product page. You can also click the link to download the user manual
The width of the refrigerator is 38.81", the cutout dimension 39.60" (39.60" is recommended, but the minimum is 39.20") allows for door swing and access to the pull-out shelves when installed as a built-in appliance. -
Does this have a light inside? What color?
Yes, blue LED inside.Thanks
-
What are the dimensions of the interior cutout in the back corner and the remaining interior dimensions?
please check the information on the tab of USER INSTRUCTIONS on the product page. If you still have questions about it, please contact us again
-
How strong are the wire shelves? I would like to use the fridge exclusively for beer, much of which is in 750 mL bottles. My current mini fridge has wire shelves that bend significantly under the weight of a full shelf of beer bottles. Are these wire shelves strong enough to hold that weight without bending?
After the shelf is full, it may bend a bit. We are aware of this and will improve it. Thank you
-
Does this unit require a drain?
Hi Ernie,
No, a drain is not required.
Thanks -
When you open the doors at a 90 degree angle from the unit, how wide is from the outside doors excluding the handles?
hi Joe,
You could refer to the link of User Instructions, you could also check it on the USER INSTRUCTION tab on this product page.
If you still need more information, please email us at info@thewinecoolerclub.com
Thanks -
Can I place this on carpeting? Or does it need a hard, flat surface? Thank you.
It will not affect the performance of the fridg if the floor is flat and level. But, please consider how to protect your carpet in case any water leaking or condensation on glass.
-
Does your 39” beer and wine cooler come in 2 sections?
Yes, there are 2 sections, left and right. The temperature of each section is 34 to 64F.
-
Can I buy more shelves
Yes, please check on the page of the PARTS & ACCESSORIES
-
Does the right wine side have two cooling temperature controls. One for red and other for white? I want to keep the left side for beer. I need three controls in all.
Hi Sandra
the right sight is one temperature zone. If you want 3 control, we recommend you consider the KBU50COMBO-BW3 -
Will this hold 72 bottles of beer and keep it at 36 degrees
Hi Tim,
Thank you for your question.
The storage capacity of the beverage compartment is 66 bottles (12 OZ 350ml), but you could also use two compartments for beer storage if necessary.
The adjustable temperature range for both compartments is the same, that's 34-64°F. You could set it at 36 degrees.
Note: The sensors which provide the temperature reading are measuring AIR temperature. The air temperature might be 5 degree variance from the set point, that means if you set the temperature to 36°F, the reading temperature will be 36 to 41°F.
Please be aware, air temperature fluctuates much easier than LIQUID temperature, therefore even though you are seeing 4-6 degree temperature swings on your display, your bottle is not experiencing such dramatic changes. Generally speaking, with a 5 degree air temperature change, the liquid change is probably about 1/2-1 degree. -
Does the wine cooler have two zones?
Hi Tom,
There are two zones LEFT and RIGHT. The temperature in each side is adjustable from 34 to 64F degrees, you could store beer or wine in both compartments.
Thanks from KingsBottle -
Can it be used at an outdoor kitchen? There is roof covering the area so no water will fall on it but I live in Arizona and the heat gets up to 115 during the summer.
Hi Gladys,
An outdoor unit should be free of water and dust, if the location is shaded and there is no dust, then the answer is yes.
This refrigerator is designed to be used in a preferably under 100°F environment, 115 degrees is a little bit higher, it should be ok but the power consumptions will be higer than it is listed.
Regarding return policy, please refer to page of shipping and returns
Thanks -
Trying to design a home bar. What are the depth dimensions with doors open? I need to make sure there is enough clearance from the back bar to the front.
Hi Ross,
the depth is 23.2 inches, you could refer to the user manual here https://cdn.shopify.com/s/files/1/1367/0857/files/2018Manual-KBU28LR.pdf?13670812744188776882 -
Can the cooler be ordered with shelves on both sides? ( no wine racks)
Yes, please leave a note when you place the order
-
Does this take a regular plug for electricity? Can this be freestanding?
Hi Pris
Yes, it takes a regular plug for electricity, this unit could be freestanding or built in.
thanks from Kingsbottle -
Is it possible to request additional wooden wine rack slats so I don't have to stack bottles on top of each other? Or is 4 the maximum that will fit on the wine side of the fridge?
Hi Nick,
additional racks are available, cost is USD10 for one additional rack. -
Is the depth measured with the handles included could you send detailed rendering of depth measurement
Hi Rose, here is the depth of KBU28LR
Depth: 23.2" excluded handle, 25.5" included handle
