Description
SUMMIT's collection of built-in wine cellars offers fully featured choices in slim fits, allowing smaller kitchens to bring convenient and reliable wine storage for every undercounter space.

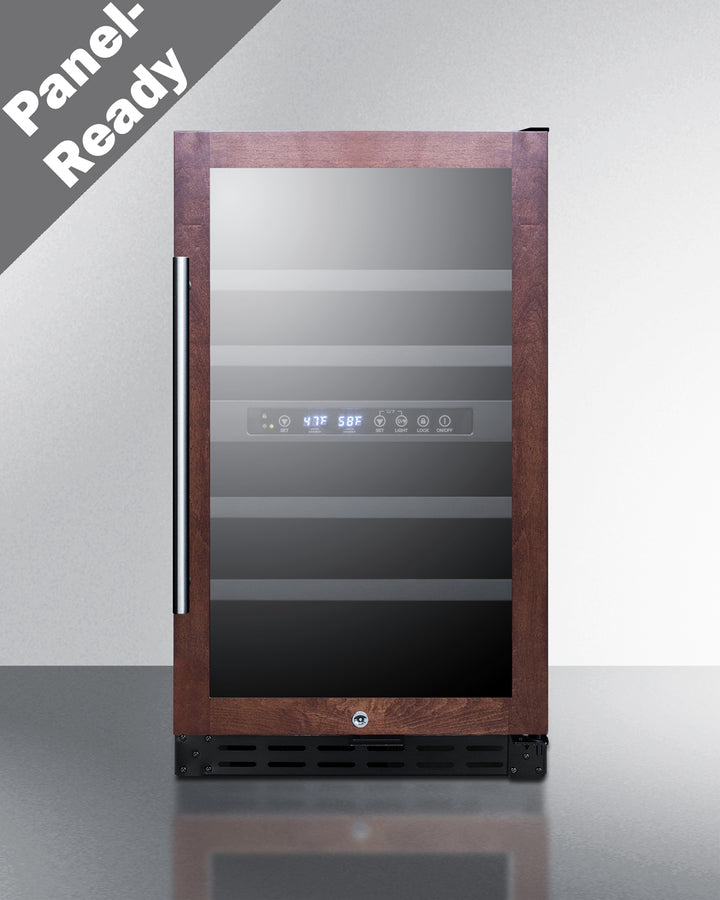

Sized just under 18" wide and 32" high, the SWC182ZPNRADA is front-breathing for built-in installation under lower ADA compliant counters, with a fully finished jet black cabinet that also allows freestanding use. The glass door features a panel-ready stainless steel door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness). A factory-installed lock and a professional style handle complete the look. NOTE: this unit ships with a right hand door swing. For a left hand version, add option LHD.
Two separate zones allow you to store your reds and whites at their own temperature, ensuring each bottle is kept under the proper conditions. This unit can hold up to 28 standard Bordeaux-style bottles or 22 wider Burgundy-style bottles. The wooden shelves feature a black finish for a modern look, with recessed LED lighting to provide an attractive and efficient presentation. The digital controls are located in the center for easy temperature management.
With its slim fit and convenient design, the SWC182ZPNRADA makes an attractive addition to any room. For this model in a standard counter height, see the SWC182ZPNR.
Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.
Key Features
Keep white wine in the upper compartment stored between 41 and 50ºF and red wine at a warmer 50 to 64ºF range in the lower chamber
32" height is designed to fit under lower ADA compliant counters
Make the best use of space by installing your appliance under the counter
Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles
Door frame can be customized with a custom overlay panel (panel frame dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness)
Double pane tempered glass to provide an elegant display with added protection
Keyed lock for a secure interior, with 2 keys included
Electronic controls for precise temperature management.
Temperature readout can be shown in Celsius or Fahrenheit
Gentle illumination for each temperature zone for an elegant presentation
Reduced maintenance with the convenience of auto defrost
4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish
Stainless steel handle completes the look
Space saving design
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Specifications
Overview
|
|
---|---|
Height of Cabinet | 31.63" (80 cm) |
Width | 17.75" (45 cm) |
Depth | 23.5" (60 cm) |
Depth with Handle | 25.25" (64 cm) |
Depth with door at 90° | 39.75" (101 cm) |
Capacity | 3.3 cu.ft. (93 L) |
Bottles | 28 bottles |
Defrost Type | Automatic |
Door | Glass/Panel-Ready Frame |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.25 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 95.0 lbs. (43 kg) |
Shipping Weight | 98.0 lbs. (44 kg) |
UPC | 761101073743 |
Wine Cellar
|
|
Number of Zones | 2 |
Door Swing | RHD |
Reversible | Factory Reversible |
Adjustable Shelves | Yes |
Shelf Type | Wood |
Shelf Qty | 4 |
Thermostat Type | Digital |
Interior Light | Yes |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.23 oz. |
High Side PSI | 150.0 |
Low Side PSI | 50.0 |
Interior Height 1 | 10.63" (27 cm) |
Interior Width 1 | 14.25" (36 cm) |
Interior Depth 1 | 18.0" (46 cm) |
Compressor Step Height | 5.25" (13 cm) |
Compressor Step Width | 14.25" (36 cm) |
Compressor Step Depth | 5.0" (13 cm) |
Level Legs | 4 |
Temperature Range | 41º to 64ºF |
Interior Height 2 | 12.25" (31 cm) |
Interior Width 2 | 14.25" (36 cm) |
Interior Depth 2 | 18.0" (46 cm) |
Available Upgrades
Exterior | |||||
---|---|---|---|---|---|
|
|||||
Door | |||||
|
Included Warranty
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
