Description
SUMMIT's ADA compliant line of built-in refrigerators brings quality and style to residential and commercial settings with space restraints.
Sized with a convenient 24" footprint, the AL57GPNR is just 32 inches high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The double tempered glass door door features a panel-ready door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 28 1/8" H x 23 1/8" W at 3/4" minimum thickness). A factory-installed lock offers additional security. This unit ships with a right hand door swing, but can be ordered to open from the other side by adding option LHD. A digital thermostat is located in the kickplate for easy temperature management.
Inside, the AL57GPNR utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage. The floor is specially slotted to hold bottles in place.

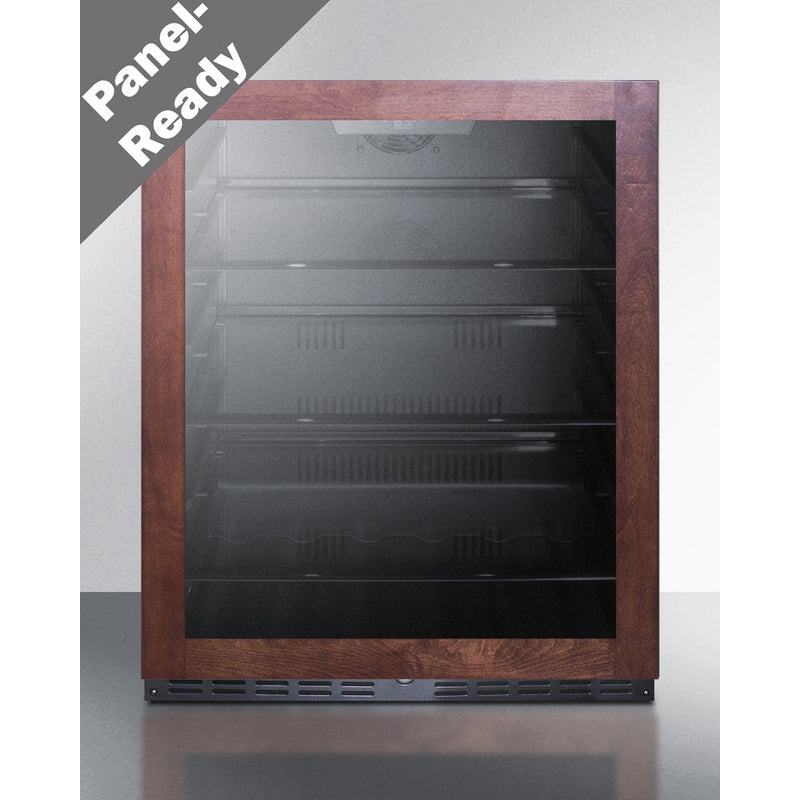

Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.
Key Features
32" height allows easy installation under lower ADA compliant counters
Front-breathing design lets you make the best use of space by installing your appliance under the counter
ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
Door frame can be customized with a custom overlay panel (panel frame dimensions: 28 1/8" H x 29 7/8" H at 3/4" minimum thickness)
Stainless steel trimmed glass door offers a heat-safe view of the interior
Keyed lock for a secure interior
No-frost operation for minimum user maintenance
Electronic controls located inside the unit for precise temperature management
Efficient and attractive presentation with LED lighting
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Floor is specially slotted to store wine and other bottles safely in place
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Door ships with a right hand door swing. For a left hand version, add option "LHD"
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm sounds if the unit's interior goes out of the recommended range
Optional setting lets you disable the lighting and alarm for up to 48 hours
Unit will retain its last settings when power is restored in the event of power loss
Space-saving design that offers easier cleanability
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Allows the unit to be used freestanding
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design with no ozone-damaging chemicals
Specifications
Overview
|
|
---|---|
Height of Cabinet | 32.0" (81 cm) |
Width | 23.63" (60 cm) |
Depth | 22.63" (57 cm) |
Depth with door at 90° | 45.0" (114 cm) |
Capacity | 5.0 cu.ft. (142 L) |
Defrost Type | Frost-Free |
Door | Glass/Panel-Ready Frame |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Energy Usage/Year | 270.0kWh/year |
Amps | 1.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 95.0 lbs. (43 kg) |
Shipping Weight | 98.0 lbs. (44 kg) |
UPC | 761101065922 |
Refrigerator Features
|
|
Sabbath Mode | Yes |
Door Swing | RHD |
Reversible | Factory Reversible |
Shelf Type | Glass |
Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.99oz. |
High Side PSI | 270.0 |
Low Side PSI | 105.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Temperature Range | 36 to 43ºF |
Sound Level | 33.6 dB |
Dimensions
|
|
Interior Height | 25.0" (64 cm) |
Interior Width | 20.0" (51 cm) |
Interior Depth | 17.5" (44 cm) |
Compressor Step Height | 3.25" (8 cm) |
Compressor Step Width | 20.0" (51 cm) |
Compressor Step Depth | 5.25" (13 cm) |
Available Upgrades
Door | |||||
---|---|---|---|---|---|
|
|||||
Exterior | |||||
|
Included Warranty
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
