Description
Summit Commercial manufactures unique refrigeration solutions for convenient storage and display in foodservice applications.
The SCR615TDCSS is an undercounter beverage center designed to optimize back bar storage, with a combination slide-out refrigerated storage drawer and standard front-opening compartment for an easy display of stored items. This unit is ETL-S listed to NSF-7 for use in commercial settings. It features a front-breathing design that allows built-in installation, while the fully finished stainless steel cabinet also enables freestanding use. Matching stainless steel handles offer a professional look.
Key Features
ETL-S listed to NSF-7 Standards for use in commercial establishments

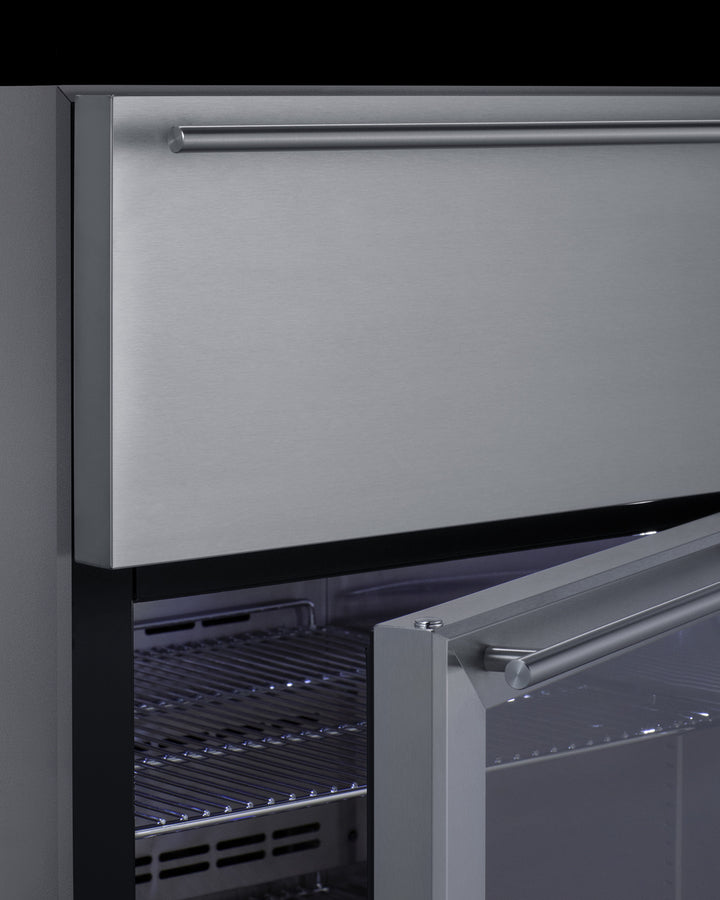

Includes an upper slide-out refrigerator drawer and lower front-opening beverage center behind a reversible glass door
Make the best use of space by installing this unit under the counter and flush with other cabinetry
Stainless steel trimmed glass door offers a full display of stored items
Pull-out top drawer provides additional refrigerated space as needed

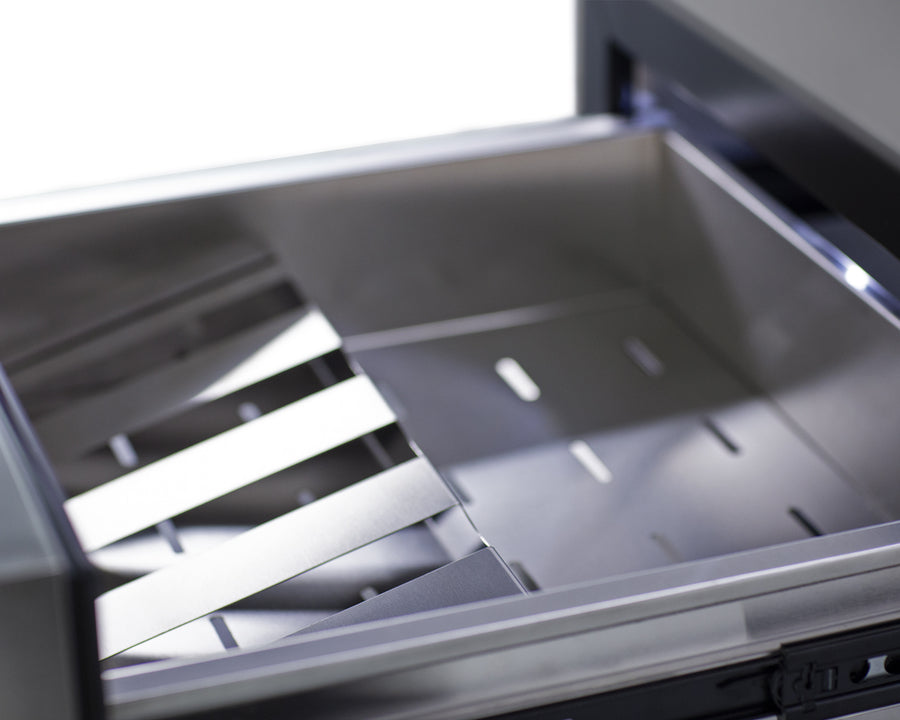

Upper drawer and lower interior walls are constructed from stainless steel for added strength and easy cleanup
Keyed lock for a secure interior on the lower door (2 keys included)
Electronic controls located in the kickplate ensure easy temperature management, with an external readout of Celsius or Fahrenheit
Reduced user maintenance with automatic defrost
User-reversible door swing allows for more flexibility in placing the unit
Four LED lights in a gentle white hue illuminate the interior for an attractive presentation
Two chrome shelves accommodate a variety of sizes with cantilevered clips to adjust to virtually any position

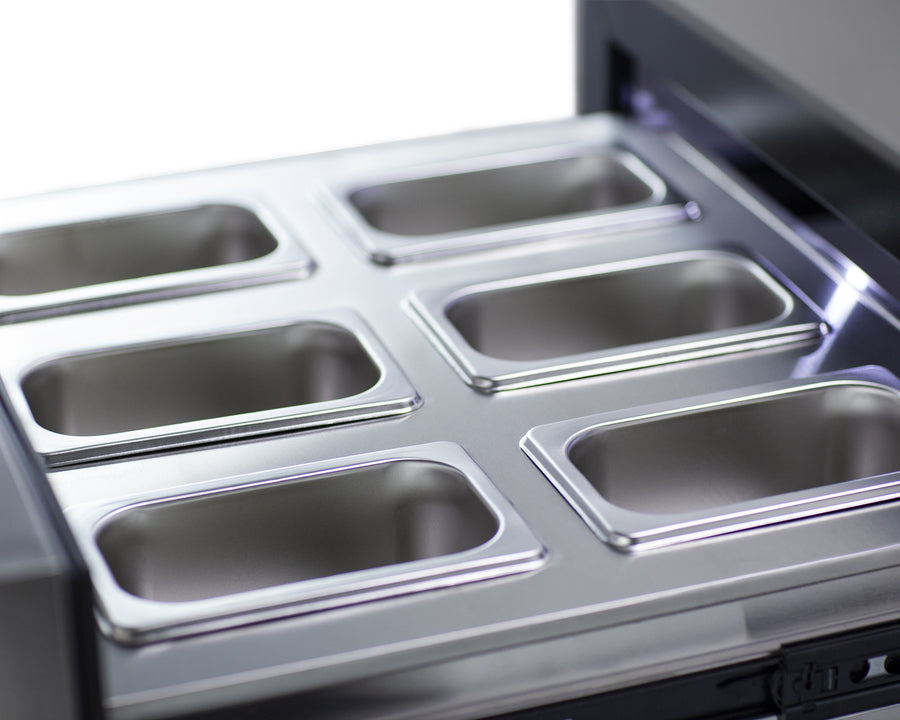

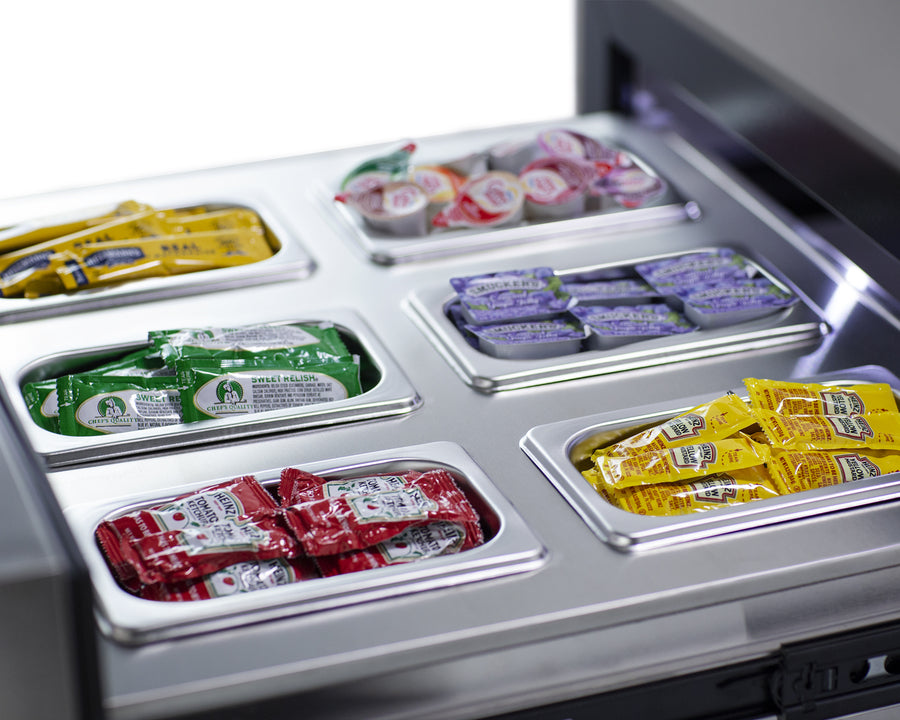

Upper drawer ships with a removable stainless steel tray with 6 cutouts for small steam pans (included) for easy and organized storage of condiments, sealed garnishes, and other popular bar items

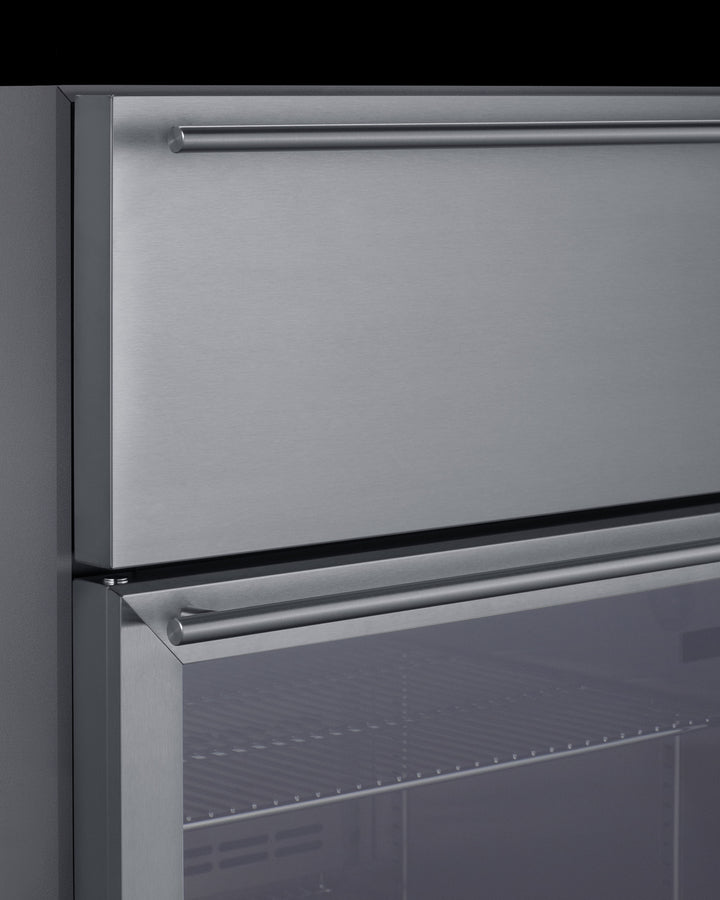

Sleek stainless steel handles mounted horizontally add an elegant touch to any setting
High temperature alarm sounds if the unit's interior goes out of the recommended range
Audible alarm will sound if the top drawer or lower door is left ajar for longer than one minute
Unit will retain its last settings when power is restored in the event of power loss
Optional setting lets you disable certain electrical functions during periods of religious observance
Interior walls are perforated ensuring proper ventilation within the unit
Internal fan ensures the interior is evenly cooled from top to bottom
Space-saving design that offers easier cleanability
Allows the unit to be used freestanding
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
|
|
---|---|
Height of Cabinet | 34.0" (86 cm) |
Width | 23.63" (60 cm) |
Depth | 23.5" (60 cm) |
Depth with Handle | 25.0" (64 cm) |
Depth with door at 90° | 45.75" (116 cm) |
Capacity | 4.76 cu.ft. (135 L) |
Defrost Type | Automatic |
Door | Glass/SS |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 119.0 lbs. (54 kg) |
Shipping Weight | 129.0 lbs. (59 kg) |
UPC | 761101079080 |
Refrigerator Features
|
|
Sabbath Mode | Yes |
Door Swing | RHD |
Reversible | Yes |
Shelf Type | Chrome |
Shelf Qty | 2 |
Wine Bottle Shelves | Yes |
Thermostat Type | Digital |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.38oz. |
High Side PSI | 270.0 |
Low Side PSI | 105.0 |
Level Legs Qty | 2 |
Interior Light | Yes |
Interior Drawers | Yes |
Interior Drawers Qty | 1 |
Temperature Range | 36°F to 43°F |
Sound Level | 35.2 dB |
Drawer Dimensions
|
|
Interior Height 1 | 9.0" (23 cm) |
Interior Width 1 | 19.38" (49 cm) |
Interior Depth 1 | 17.38" (44 cm) |
Dimensions
|
|
Interior Height | 17.63" (45 cm) |
Interior Width | 19.38" (49 cm) |
Interior Depth | 17.38" (44 cm) |
Compressor Step Height | 3.75" (10 cm) |
Compressor Step Width | 19.38" (49 cm) |
Compressor Step Depth | 4.63" (12 cm) |
Available Upgrades
Exterior | ||||||
---|---|---|---|---|---|---|
|
||||||
Door | ||||||
|
Included Warranty
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
