Description
Summit Appliance offers a versatile line of full-sized built-in beer dispensers designed for low maintenance storage in the style of your choice.

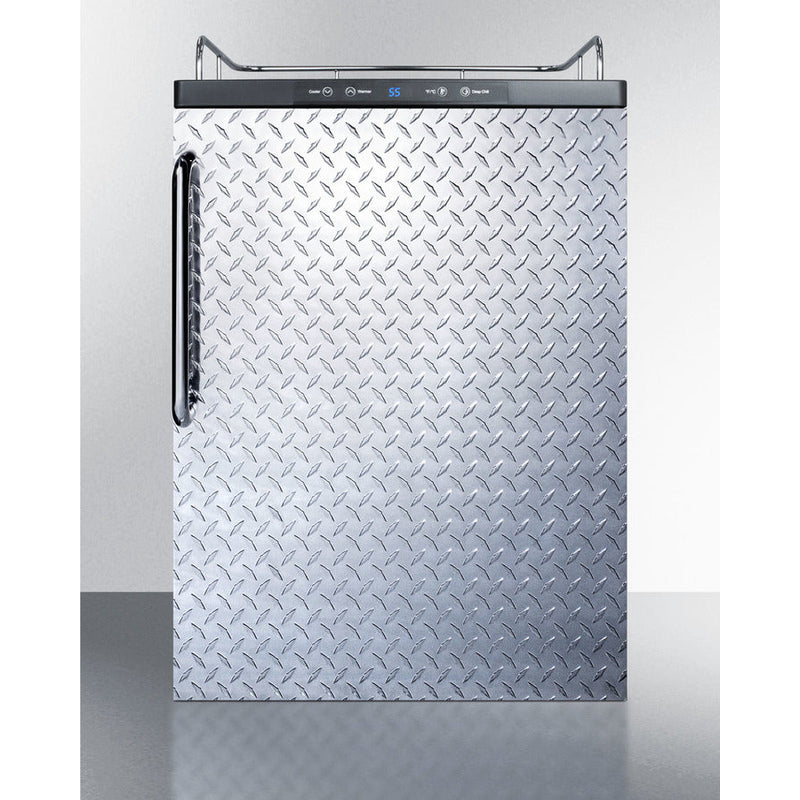

The SBC635MBINKDPL features a large interior that can hold a full half, quarter, 1/6 or mini keg. No tapping equipment is included, allowing 'do-it-yourselfers' to customize the unit with their own system. It features a front-breathing design for built-in installation under counters. The aluminum wrapped door comes in a unique textured diamond plate design and polished towel bar handle to create an industrial look. The surface includes a removable drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. The user-reversible door swing makes it easy to accommodate any location’s setup. This unit is height adjustable from 33 1/2" to 34" to best fit your undercounter space. Please note that the door does not open in its own radius. When planning your cutout, if the unit is mounted against a wall or flush under cabinetry, you will need between 25 and 25 1/4" width for proper ventilation.
Automatic defrost operation ensures minimum user maintenance inside the 5.7 cu.ft. interior. A digital thermostat makes it easy to manage the temperature at the touch of a button. The external digital display shows the temperature in Celsius or Fahrenheit to ensure your beer is stored exactly how you like it. The floor is reinforced with a steel cover for added durability when loading kegs.
For more style options, browse the full SBC635MBI Series.
Key Features
Large 5.6 cu.ft. interior can accept a full half barrel keg, two 1/6 barrel kegs, or a pony keg
Make the best use of space by installing your appliance under the counter; NOTE: if installing flush with wall or cabinets, unit will require extra space due to the door design. Width should be 25" to 25 1/4". For more information, see the user manual
Install your own tapping equipment for a customized beer cooler
Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit
Operates between 33º and 50ºF to keep a variety of beers stored at just the right serving temperature
Reduced maintenance with auto defrost system
Textured diamond plate finish in wrapped aluminum creates a unique industrial look
Curved handle in polished stainless steel completes the look
Allows the unit to be used freestanding
To make the beer dispenser portable, install this set of 2 1/2" high locking casters
Attractive chrome guard rail helps to reduce spills and neaten service
Interior includes steel cover to protect the floor when loading kegs
Removable drip tray catches spills to help contain the mess
Great for getting faster cooling results when loading your first keg
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
|
|
---|---|
Height of Cabinet | 33.5" (85 cm) |
Width | 24.0" (61 cm) |
Width with Door Open | 25.25" (64 cm) |
Depth | 25.88" (66 cm) |
Depth with Handle | 27.88" (71 cm) |
Depth with door at 90° | 47.5" (121 cm) |
Capacity | 5.6 cu.ft. (159 L) |
Dishwasher | Standard |
Defrost Type | Automatic |
Door | Diamond Plate |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Energy Usage/Year | 310.0kWh/year |
Amps | 0.86 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 110.0 lbs. (50 kg) |
Shipping Weight | 115.0 lbs. (52 kg) |
UPC | 761101046136 |
Kegerator
|
|
Door Swing | RHD |
Reversible | Factory Reversible |
Thermostat Type | Digital |
Fan Type | Exterior |
Refrigerant | R600a |
Refrigerant Amount | 1.13 oz. |
High Side PSI | 250.0 |
Low Side PSI | 110.0 |
Inter Height | 28.0" (71 cm) |
Interior Width | 20.5" (52 cm) |
Interior Depth | 19.0" (48 cm) |
Compressor Step Height | 8.25" (21 cm) |
Level Legs Qty | 4 |
Wheel Qty | 4 |
Temperature Range | 33º to 50º F |
Available Upgrades
Exterior | ||
---|---|---|
|
Included Warranty
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
