Description

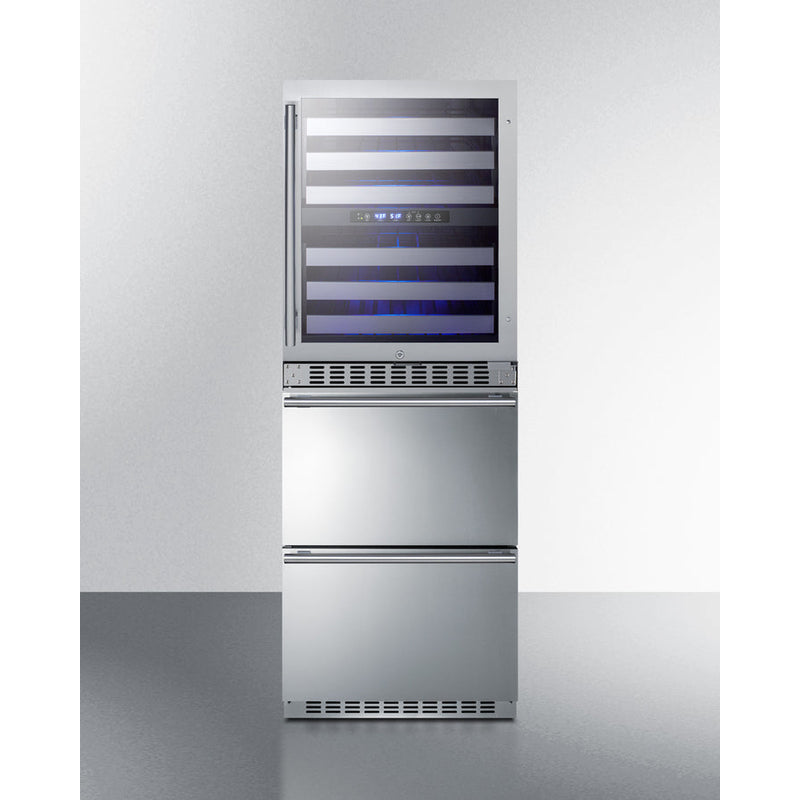

Summit brings an innovative, elegant solution to store wine, food, and beverages with its combination two-zone wine cellar and two-drawer refrigerator-freezer - the perfect entertainment station for the home.
Offering complete refrigeration convenience in a slim-fitting design, the SWCDRF24 is ideal for home bars, kitchens, and similar residential settings seeking to store wine, beverages, and food in a modern style. This unit can also be ordered to accept custom panels over the drawers and door frame (see model SWCDRF24PNR). Additional options are available with a bottom refrigerator (model SWCDAR24) or a bottom freezer (model SWCDAF24).
Key Features
Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar (model ALWC532) and two-drawer refrigerator-freezer (model SPRF342D, perfect for home bars, kitchens, and similar residential spaces
Slim 24" wide fit offers full storage for wine, food, and beverage in a compact footprint
Front-breathing design allows this unit be built in for added space savings
Single-piece door trim offers a more deluxe look
Solid stainless steel handles 1” in diameter afford style to any setting
Shelves move smoothly on ball-bearing glides for easier loading and unloading
Reduced maintenance with auto defrost system
Keyed lock for secure interior, with two keys included
User-reversible door swing makes it easy to best accommodate your setting

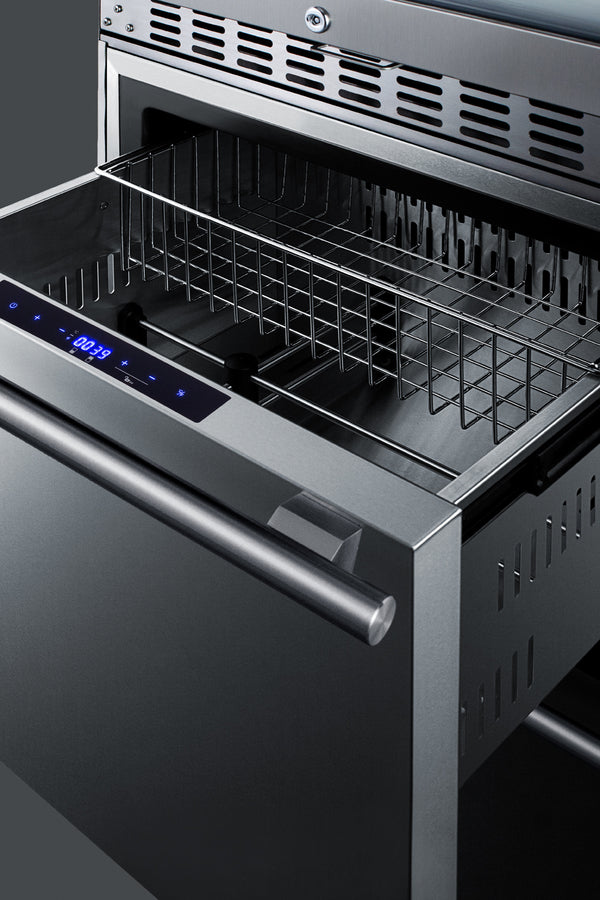

Slide-out drawers offer 3.4 cu.ft. of interior storage
Two adjustable dividers make it simple to organize the drawer interiors
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Protects from everyday wear and tear in a durable, elegant design
Audible alarm will sound if the drawers are left ajar for over a minute
Unit will retain its last settings when power is restored in the event of power loss
Disables digital controls after two minutes of activity for added safety
Optional setting lets you disable the lighting and alarm for up to 48 hours
Included 6 ft. cord allows users to operate both the wine cellar & refrigerator-freezer using a single plug for added convenience
Unit comes fully assembled for user convenience
This unit is also available with a bottom refrigerator (see the SWCDAR24) or a bottom freezer (see the SWCDAF24)
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
|
|
---|---|
Height of Cabinet | 65.63" (167 cm) |
Width | 23.63" (60 cm) |
Depth | 23.75" (60 cm) |
Depth with Handle | 25.75" (65 cm) |
Depth with door at 90° | 45.75" (116 cm) |
Capacity | 3.9 cu.ft. (110 L) |
Bottles | 46 bottles |
Defrost Type | Automatic |
Door | Glass/SS |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Energy Usage/Year | 380.0kWh/year |
Other Energy Info | ALWC532: 1.25Ams; SPRF34D: 1.0 Amp |
Amps | 2.25 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 221.0 lbs. (100 kg) |
Shipping Weight | 231.0 lbs. (105 kg) |
UPC | 761101082844 |
Wine Cellar
|
|
Number of Zones | 2 |
Door Swing | RHD |
Reversible | Yes |
Shelf Type | Wire |
Shelf Qty | 6 |
Thermostat Type | Digital |
Interior Light | Yes |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.23 oz. |
High Side PSI | 150.0 |
Low Side PSI | 50.0 |
Interior Height 1 | 11.88" (30 cm) |
Interior Width 1 | 20.5" (52 cm) |
Interior Depth 1 | 18.0" (46 cm) |
Interior Height - Drawer 1 | 10.0" (25 cm) |
Interior Width - Drawer 1 | 18.75" (48 cm) |
Interior Depth - Drawer 1 | 15.5" (39 cm) |
Interior Height - Drawer 2 | 9.25" (23 cm) |
Interior Width - Drawer 2 | 18.75" (48 cm) |
Interior Depth - Drawer 2 | 15.5" (39 cm) |
Temperature Range | ALWC532: 41°F to 64°F; SPRF34D: 36°F to 43°F/Freezer: -11°F to 11°F |
Interior Height 2 | 11.63" (30 cm) |
Interior Width 2 | 20.5" (52 cm) |
Interior Depth 2 | 18.0" (46 cm) |
Available Upgrades
Door | |||||
---|---|---|---|---|---|
|
|||||
Exterior | |||||
|
Included Warranty
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
