Description
Summit Commercial brings unique appliance choices to outdoor ADA compliant settings with a new line of commercial beer dispensers made in Europe.

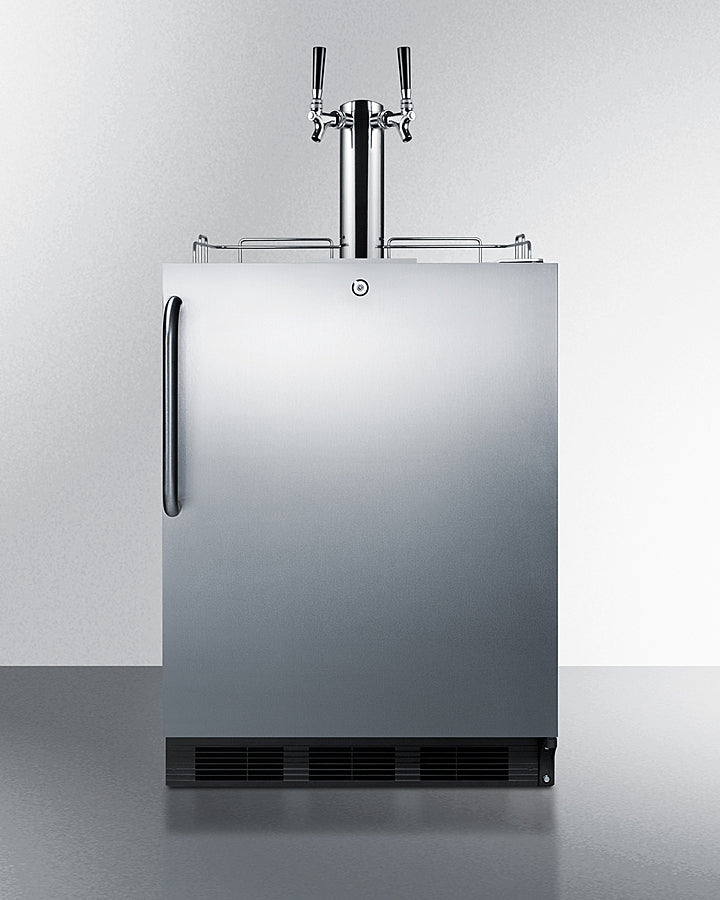

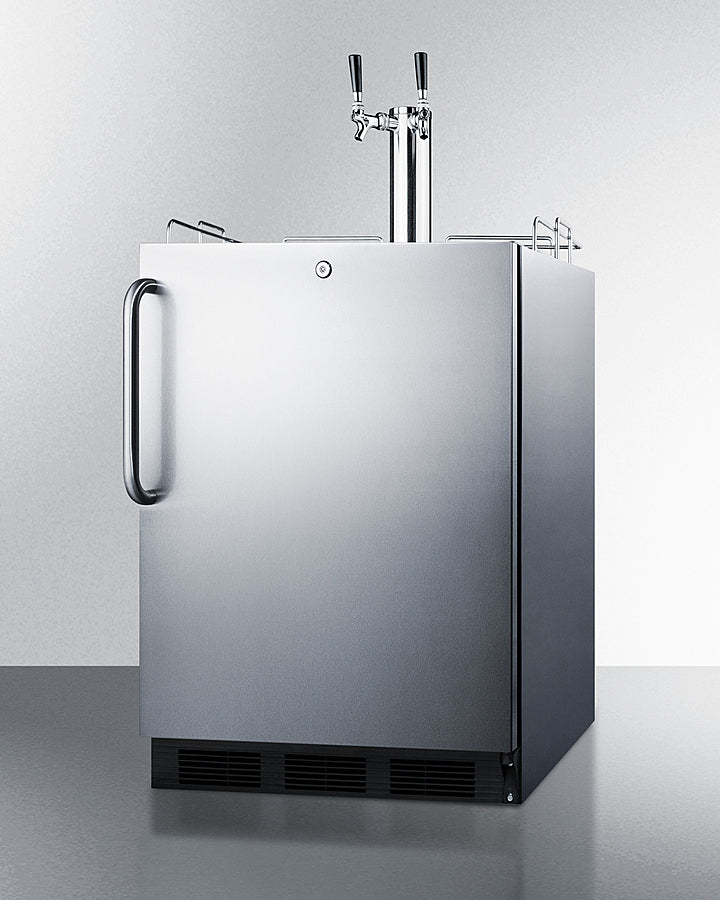

Sized at 32 inches high, the SBC54OSBIADA is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished cabinet also enables freestanding use. This unit comes with a weatherproof 304 grade stainless steel wrapped cabinet and door, complete with a pro style towel bar handle and front-mounted lock. We include a guard rail and two-piece stainless steel drip tray for cleaner service. The SBC54OSBIADA ships with a complete Sankey American dual tap kit complete with a draft tower, regulator, 5 lb. CO2 tank, and all the equipment you need to serve beer on tap.

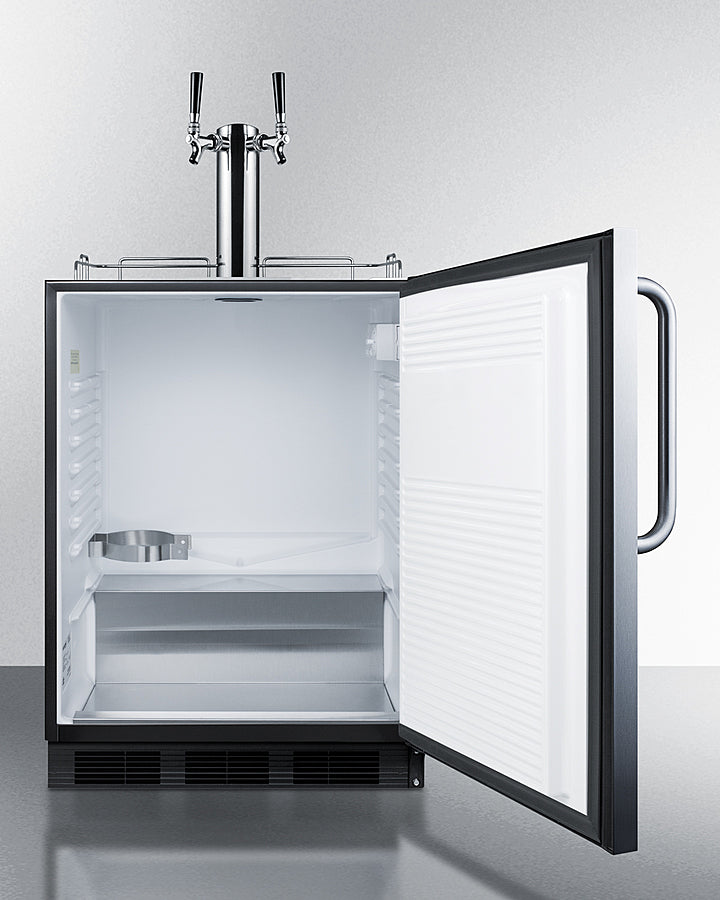

Inside, the SBC54OSBIADA is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A CO2 tank bracket is located inside, allowing you to keep the tank in the cabinet and save on exterior depth.
The SBC54OSBIADA is ETL-S listed to NSF-7 commercial standards and uses environmentally friendly hydrocarbon based refrigerant (R600a) to comply with certain state's guidelines. This unit can also be ordered with alternate tap equipment for coffee, wine, or kombucha.
Key Features
Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
Front-breathing design allows fully recessed installation under counters
Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, connection hardware, and cleaning kit
Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs
Complete stainless steel construction for easy durability in the outdoors
Front lock located towards the top of the door for convenient access, with 2 keys included
Curved towel bar style handle in brushed stainless steel
Interior dial thermostat ensures easy temperature management
No-frost operation for minimum user maintenance
Removable two-piece drip tray included for added convenience
Durable railing makes it easier to neaten service
Turn the light on when you need it and off when you're done with a convenient rocker switch
Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
Interior includes steel cover to protect the floor when loading kegs
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Cold wall design with hidden evaporator and seamless interior
Allows the unit to be used freestanding
Our integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks and circuit breaks
Environmentally friendly design without ozone-damaging chemicals
Specifications
Overview
|
|
---|---|
Height of Cabinet | 32.0" (81 cm) |
Height to Hinge Cap | 32.25" (82 cm) |
Width | 23.75" (60 cm) |
Depth | 24.75" (63 cm) |
Depth with Handle | 27.25" (69 cm) |
Depth with door at 90° | 47.0" (119 cm) |
Capacity | 5.5 cu.ft. (156 L) |
Defrost Type | Automatic |
Door | Stainless Steel |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.2 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 110.0 lbs. (50 kg) |
Shipping Weight | 120.0 lbs. (54 kg) |
UPC | 761101069586 |
Kegerator
|
|
Door Swing | RHD |
Reversible | Factory Reversible |
Tap Kit | Yes |
Height with Tap | 47.5" (121 cm) |
Number of Taps | 2 |
Thermostat Type | Dial |
Interior Light | Yes |
Fan Type | Exterior |
Refrigerant | R600a |
Refrigerant Amount | 0.64 oz. |
High Side PSI | 180.0 |
Low Side PSI | 80.0 |
Inter Height | 26.25" (67 cm) |
Interior Width | 21.0" (53 cm) |
Interior Depth | 17.75" (45 cm) |
Compressor Step Height | 5.5" (14 cm) |
Compressor Step Width | 21.0" (53 cm) |
Compressor Step Depth | 5.5" (14 cm) |
Temperature Range | 34º to 43ºF |
Available Upgrades
Exterior | |||
---|---|---|---|
|
|||
Lock | |||
|
Included Warranty
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
