Description
Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation.

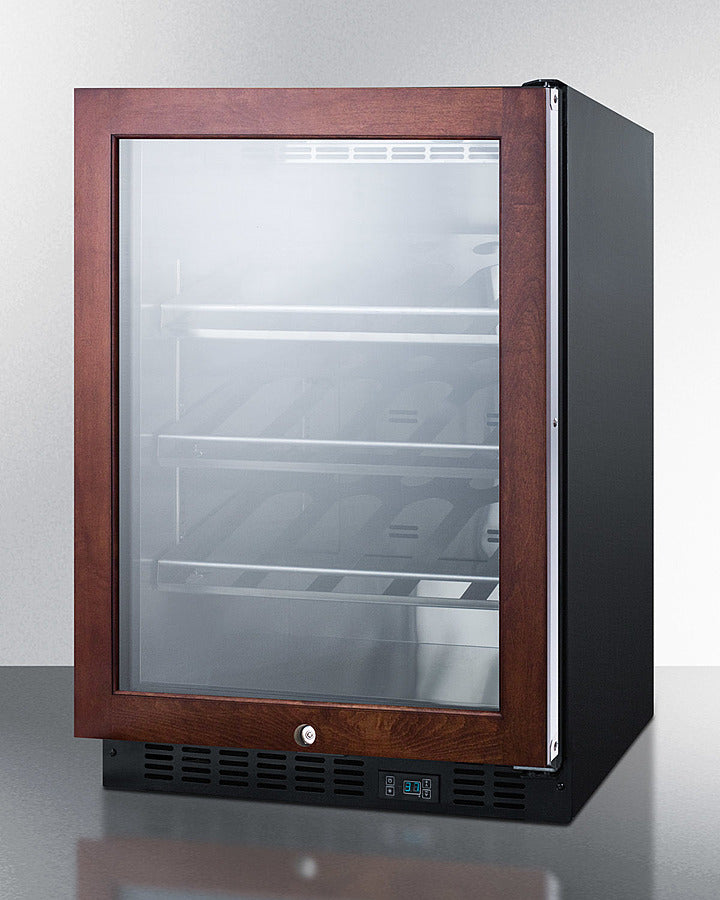

The SCR610BLCHPNR is an undercounter wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, with large 5 cu.ft. interior. This unit features a front-breathing design for built-in installation, with a fully finished black cabinet that also allows freestanding use. The double tempered glass door door features a panel-ready door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 29 7/8" H x 23 1/8" W at 3/4" minimum thickness). A factory-installed lock offers additional security. This unit ships with a right hand door swing, but can be ordered to open from the other side by adding option LHD.

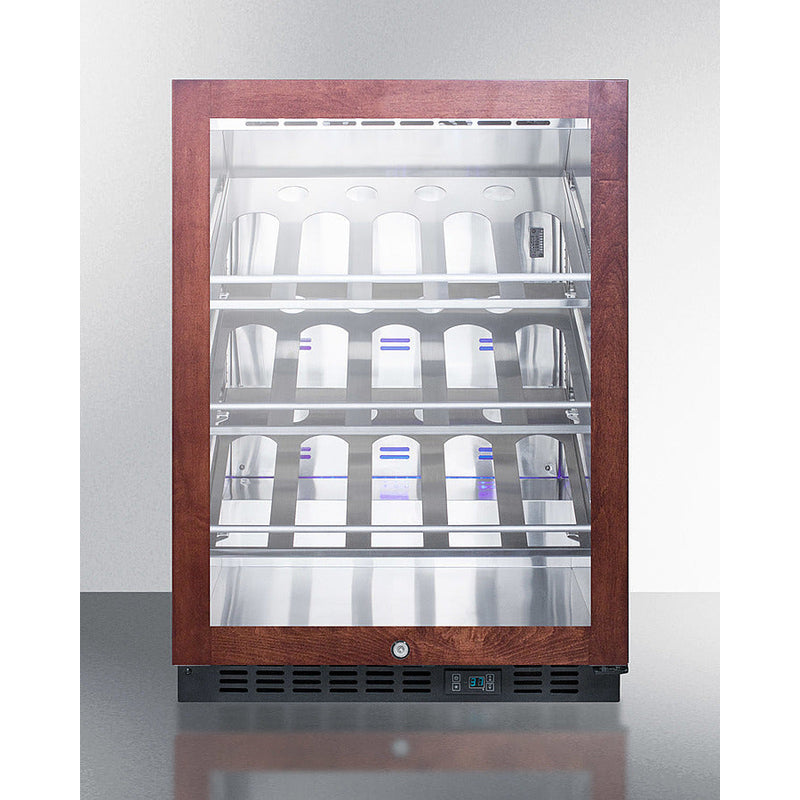

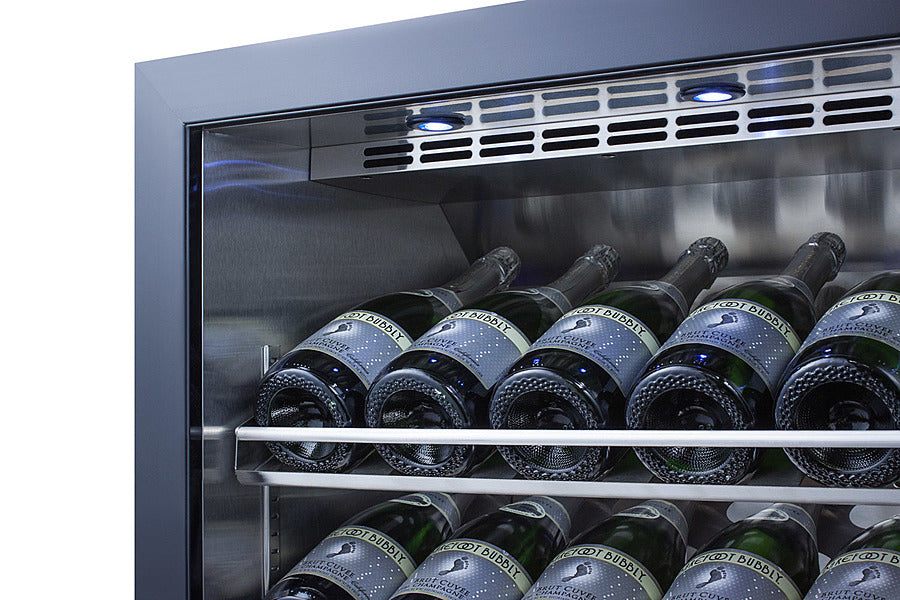

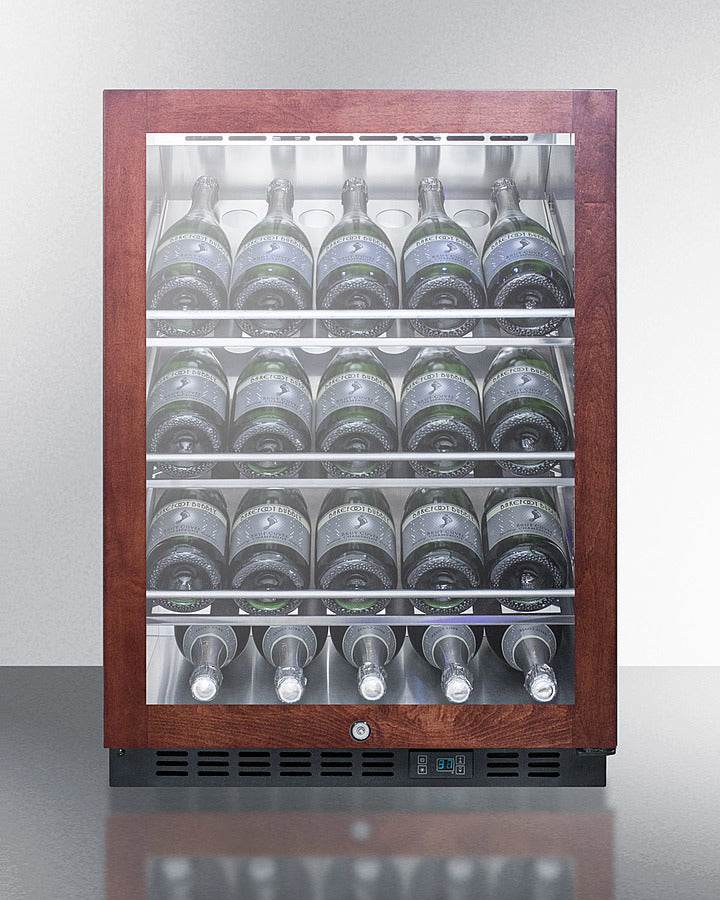

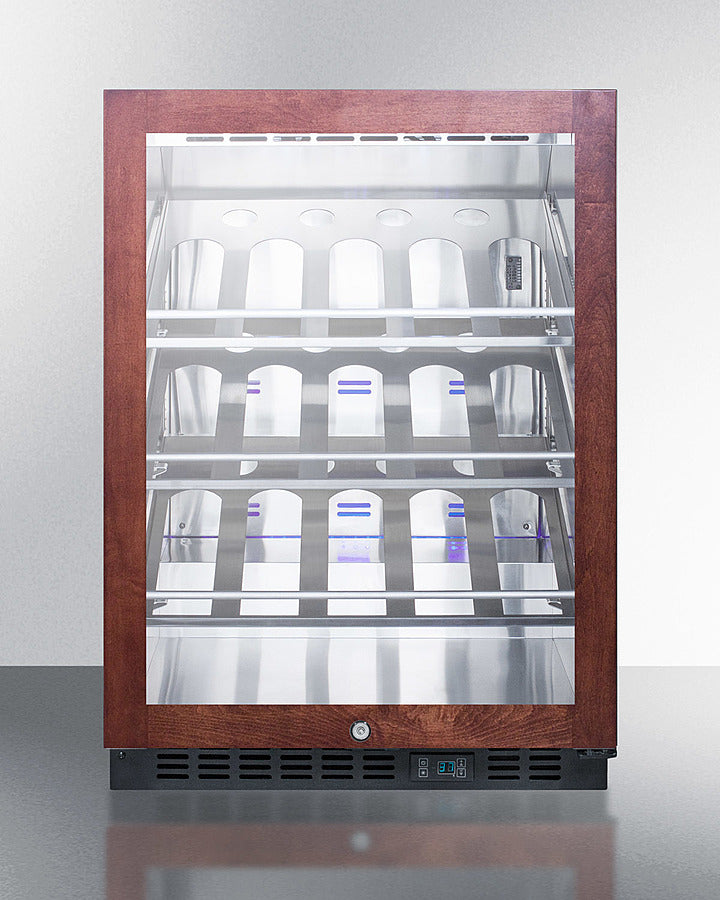

Inside, the SCR610BLCHPNR includes stainless steel shelving specially designed to hold champagne and sparkling wine bottles at a slight angle, providing a full display of the label. The interior walls and floor are constructed from stainless steel for lasting durability in busy commercial settings. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. Digital controls make it easy to manage the interior.
With its unique design and commercial grade construction, the SCR610BLCHPNR is the perfect undercounter option for storing and displaying larger bottles. Additional choices are available for outdoor use, and in larger sizes for higher bottle capacity. Browse our website for more options.
Key Features
ETL-S listed to NSF-7 Standards for use in commercial establishments
Make the best use of space by installing this unit under the counter and flush with other cabinetry
Stainless steel shelves are specially sized to store wider wine and champagne bottles
Door frame can be customized with a custom overlay panel (panel frame dimensions: 29 7/8" H x 23 1/8" W at 3/4" minimum thickness)
Cantilevered clips are pre-installed so that the shelving can be installed at a slight angle to provide a display of the bottle labels. Clips can be adjusted to a flat position to accommodate more shelves
Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view
Stainless steel trimmed glass door offers a full display of stored items
Walls are constructed from stainless steel for added strength and easy cleanup
Keyed lock for a secure interior
Intuitive digital controls ensure easy temperature management
Door ships with a right hand door swing. For a left hand version, add option "LHD"
Reduced user maintenance with automatic defrost
Internal fan ensures the interior is evenly cooled from top to bottom
Space saving design with easier cleanability
Allows the unit to be used freestanding
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
|
|
---|---|
Height of Cabinet | 34.0" (86 cm) |
Width | 23.63" (60 cm) |
Depth | 23.5" (60 cm) |
Depth with door at 90° | 45.5" (116 cm) |
Capacity | 5.0 cu.ft. (142 L) |
Bottles | 20 bottles |
Defrost Type | Automatic |
Door | Glass/Panel-Ready Frame |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 0.8 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 140.0 lbs. (64 kg) |
Shipping Weight | 145.0 lbs. (66 kg) |
UPC | 761101065502 |
Wine Cellar
|
|
Number of Zones | 1 |
Door Swing | RHD |
Reversible | Factory Reversible |
Shelf Type | Steel |
Shelf Qty | 3 |
Thermostat Type | Digital |
Interior Light | Yes |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.99 oz. |
High Side PSI | 270.0 |
Low Side PSI | 105.0 |
Interior Height 1 | 25.0" (64 cm) |
Interior Width 1 | 19.38" (49 cm) |
Interior Depth 1 | 17.38" (44 cm) |
Compressor Step Height | 3.75" (10 cm) |
Compressor Step Width | 19.38" (49 cm) |
Compressor Step Depth | 4.63" (12 cm) |
Temperature Range | 36 to 43ºF |
Sound Level | 37.4 dB |
Available Upgrades
Exterior | |||||
---|---|---|---|---|---|
|
|||||
Door | |||||
|
Included Warranty
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
