Description
Summit offers a unique selection of built-in capable full-sized wine cellars with a versatile luxury design ideal for residential or commercial use.
The SWCP1988TCSS is a 24" wide triple zone wine cellar that is ETL-S listed to NSF-7 commercial standards. It features a front-breathing design for built-in installation, with a fully finished stainless steel cabinet that also allows freestanding use. Sized just under 27" deep, this unit has a sealed back and right angle plug for added depth savings. The luxury exterior features a double pane tempered glass door with a seamless stainless steel trim. A stainless steel kickplate provides added elegance, while the pro-style handle completes the look. This unit includes a factory-installed keyed lock for added security and powerful magnetic gaskets to ensure a proper seal in high-traffic commercial settings.
Key Features
ETL-S listed to NSF-7 standards for use in restaurants, bars, and other foodservice settings
Front-breathing design allows the unit to be integrated with minimum clearance for a flush look (fits in spaces sized at 70.75" H x 23.88"W x 28" D)
Versatile upper zone accommodates red, white, or sparkling wine. The middle zone chills white wine while the lower zone preserves yours reds at a warmer temperature
Two cooling systems (one for the upper zone and one for the middle/lower zones) ensure your collection is kept under the proper conditions
Provides a full display of the interior, with two levels of glass for added protection
Single-piece door trim offers a more deluxe look
Located inside the unit, the digital thermostats allow easy temperature management with a display in Celsius or Fahrenheit

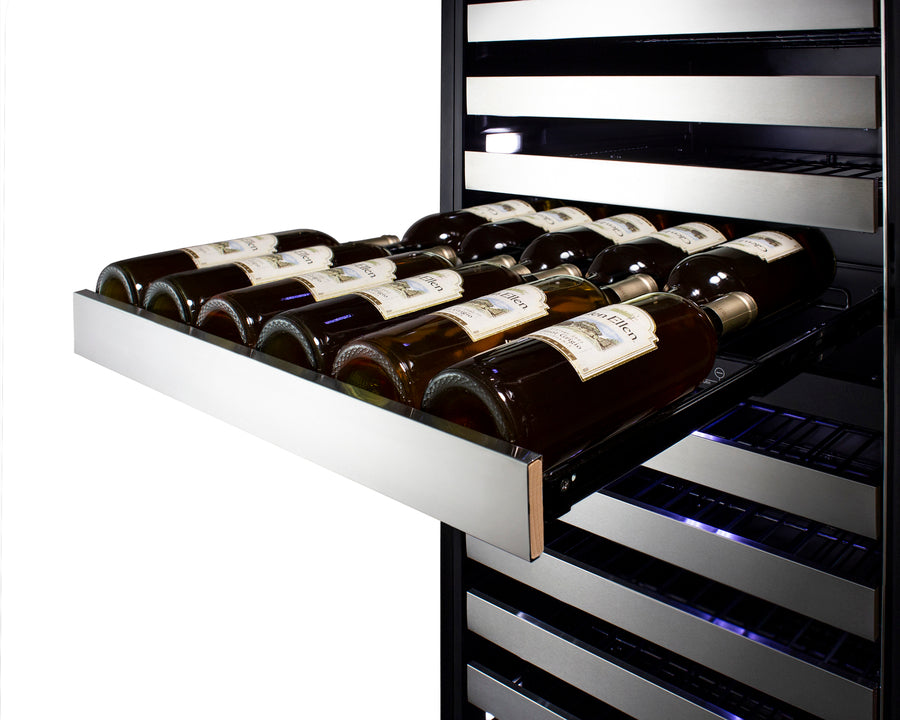

12 shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity
Fronts feature a stainless steel accent to elevate your presentation

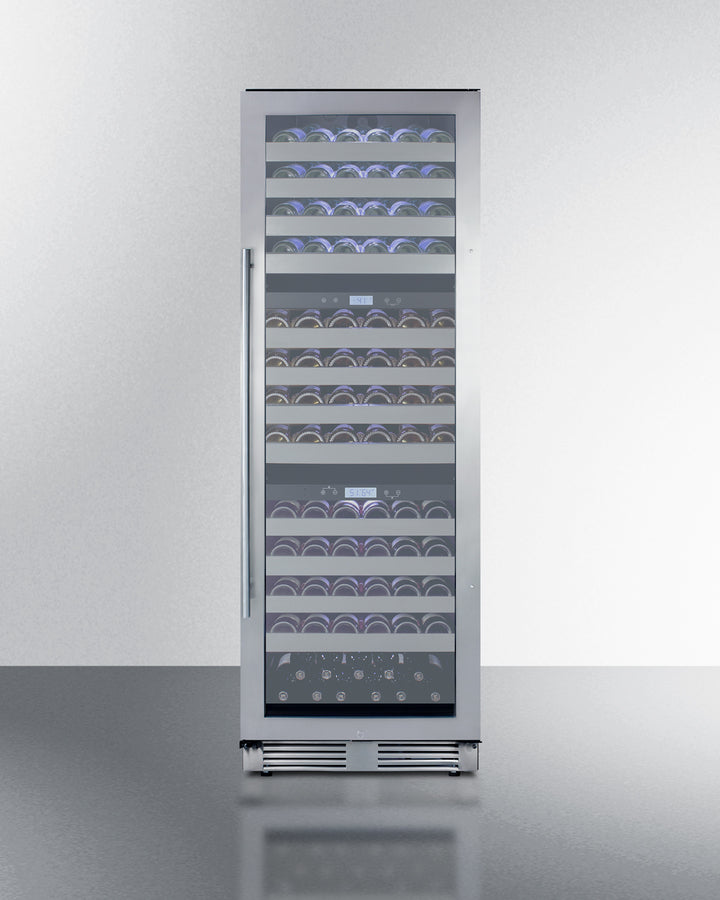

Interior can hold up to 149 standard 750ml Bordeaux style bottles (17 bottles stacked on the upper shelf, 11 bottles on each additional shelf, and 11 on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or Chardonnay), you can accommodate up to 102 bottles (8 per shelf with 6 stacked on the slotted floor)
37" long handle in a brushed stainless look offers the perfect finish to your wine cellar
Keyed lock secures all three zones (2 keys included)
Upper zone: 41-65°F for red, white, or sparkling wine; Middle zone: 41-54°F perfect for chilling white; Lower zone: 54-65°F for holding reds at a warmer temperature
Allows for front ventilation in an elegant design
Rubber trim prevents air in the upper zone from affecting the air temperature in the middle and lower zones
Helps to purify air for an odor-free interior
Audibly sounds if the interior rises or falls out of recommended range
Alerts if unit door is ajar for more than 5 minutes
Ensures a tight seal for energy savings and improved performance
Flush back allows for a better fit and easier cleanability
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
|
|
---|---|
Height of Cabinet | 69.5" (177 cm) |
Width | 23.63" (60 cm) |
Depth | 26.5" (67 cm) |
Depth with Handle | 28.25" (72 cm) |
Depth with door at 90° | 8.75" (22 cm) |
Bottles | 149 bottles |
Defrost Type | Automatic |
Door | Glass/SS |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.3 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 279.0 lbs. (127 kg) |
Shipping Weight | 310.0 lbs. (141 kg) |
UPC | 761101082790 |
Wine Cellar
|
|
Number of Zones | 3 |
Door Swing | RHD |
Reversible | Factory Reversible |
Shelf Type | Wire |
Shelf Qty | 12 |
Thermostat Type | Digital |
Interior Light | Yes |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.58 oz. |
High Side PSI | 320.0 |
Low Side PSI | 120.0 |
Interior Height 1 | 62.75" (159 cm) |
Interior Width 1 | 20.5" (52 cm) |
Interior Depth 1 | 26.5" (67 cm) |
Level Legs | 2 |
Temperature Range | 41-65°F (upper zone); 41-54°F (middle zone); 54-65°F (lower zone) |
Available Upgrades
Exterior | ||||
---|---|---|---|---|
|
||||
Door | ||||
|
Included Warranty
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
