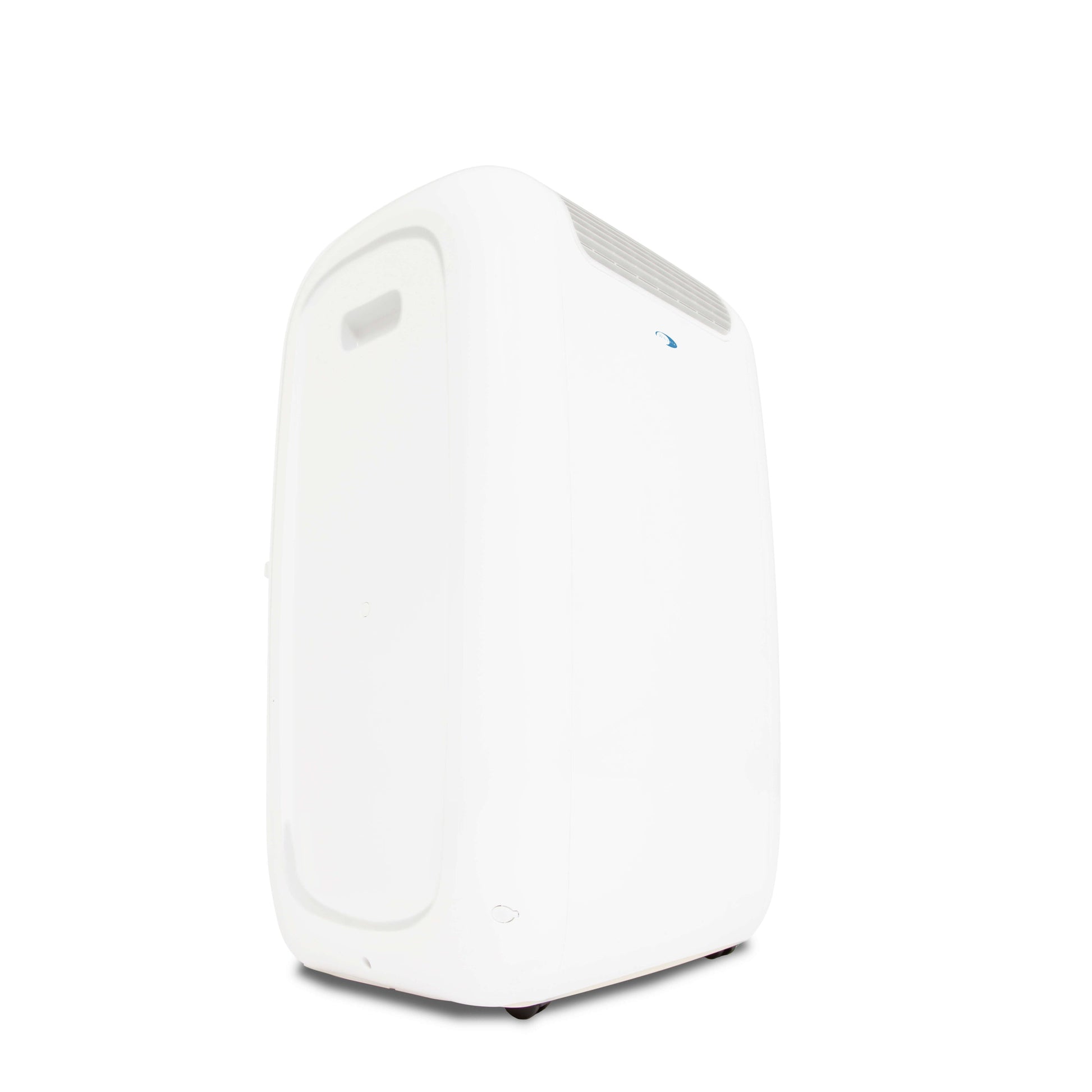

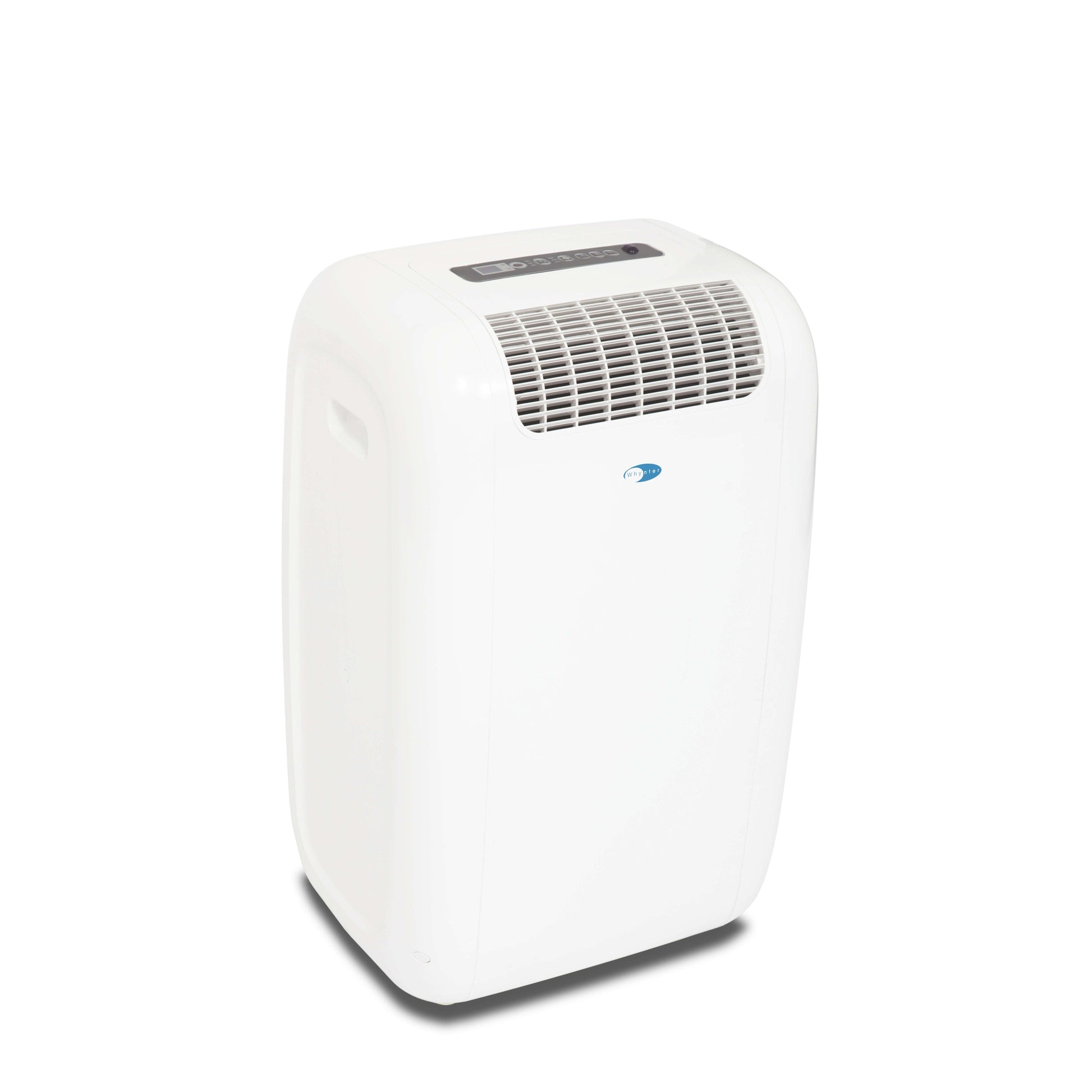

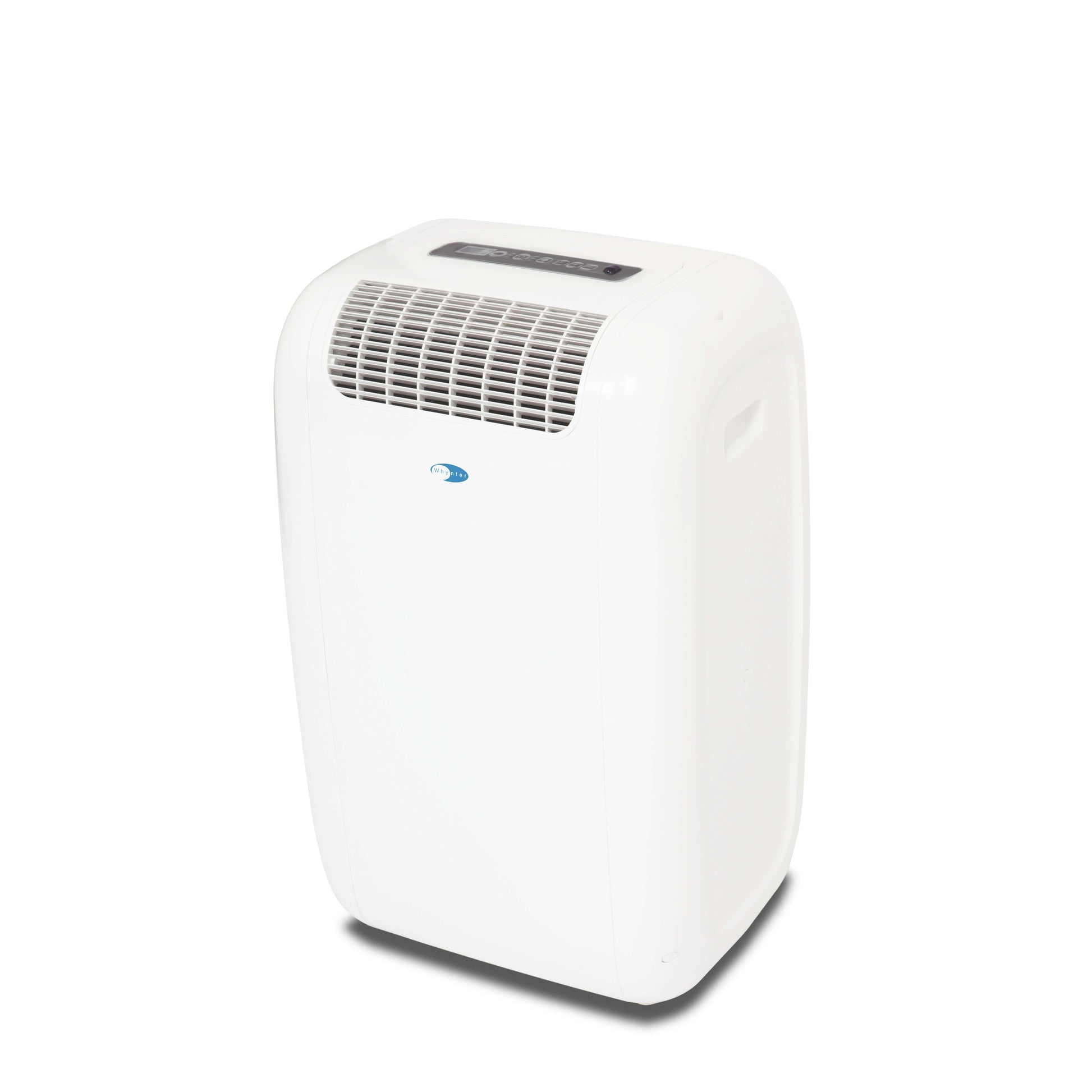

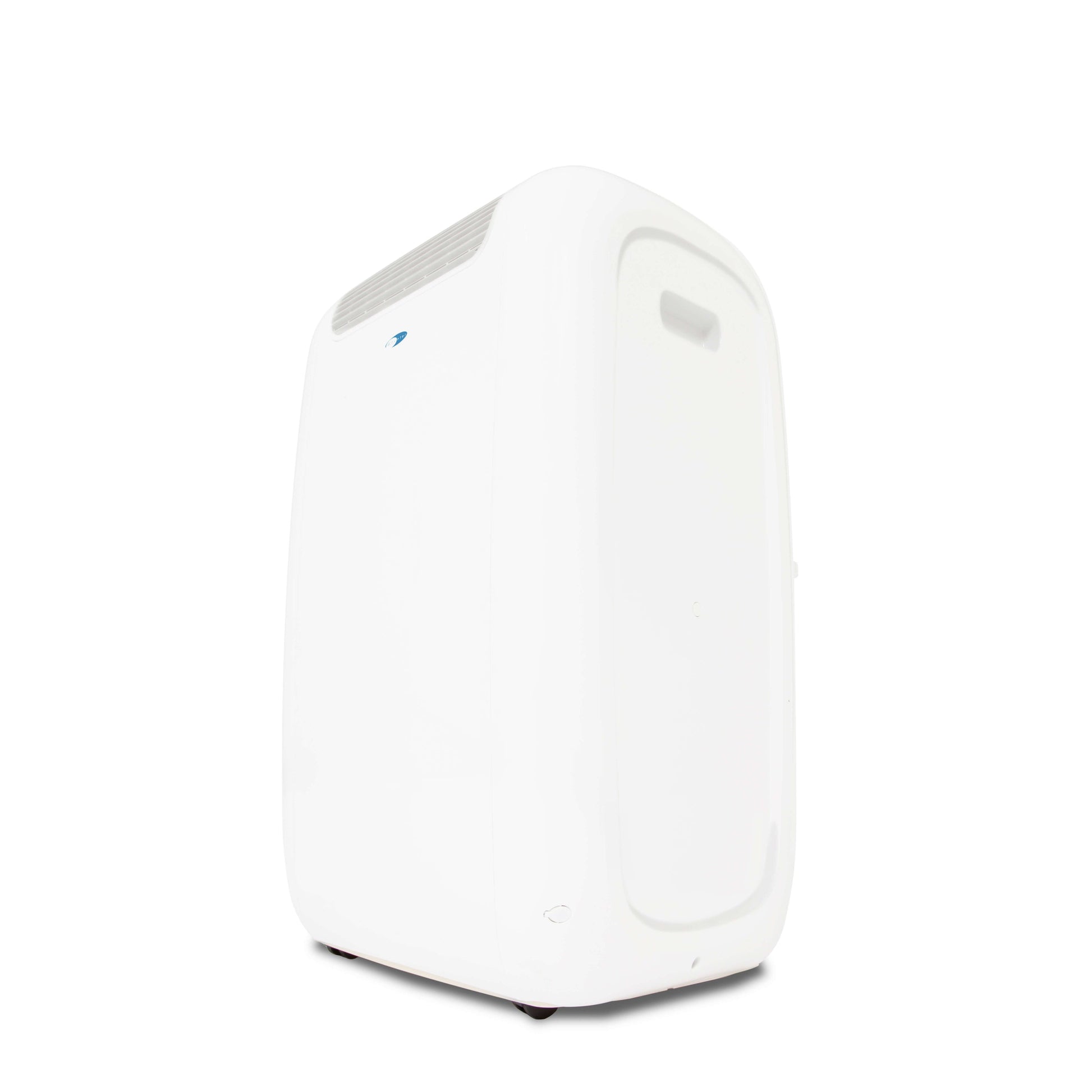

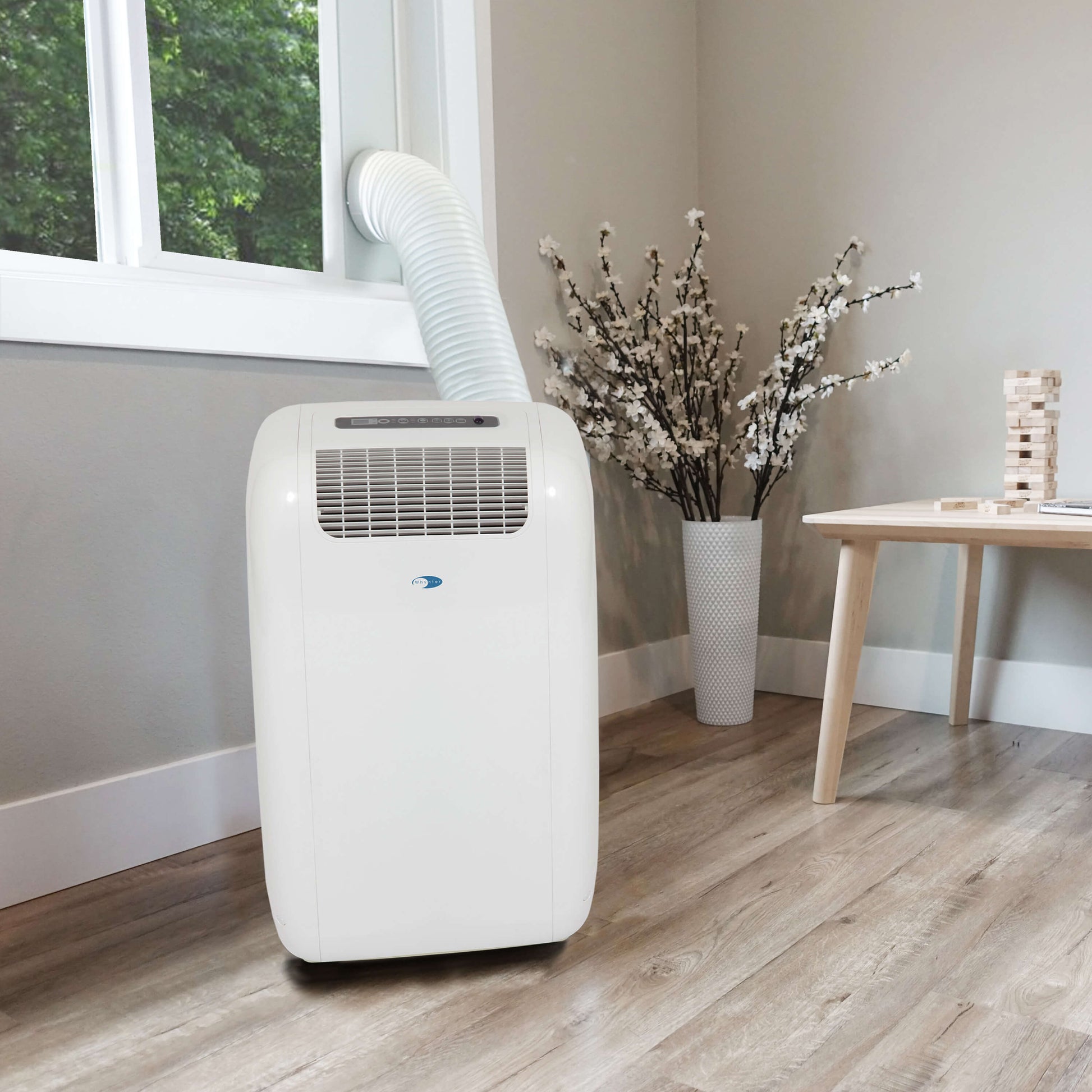

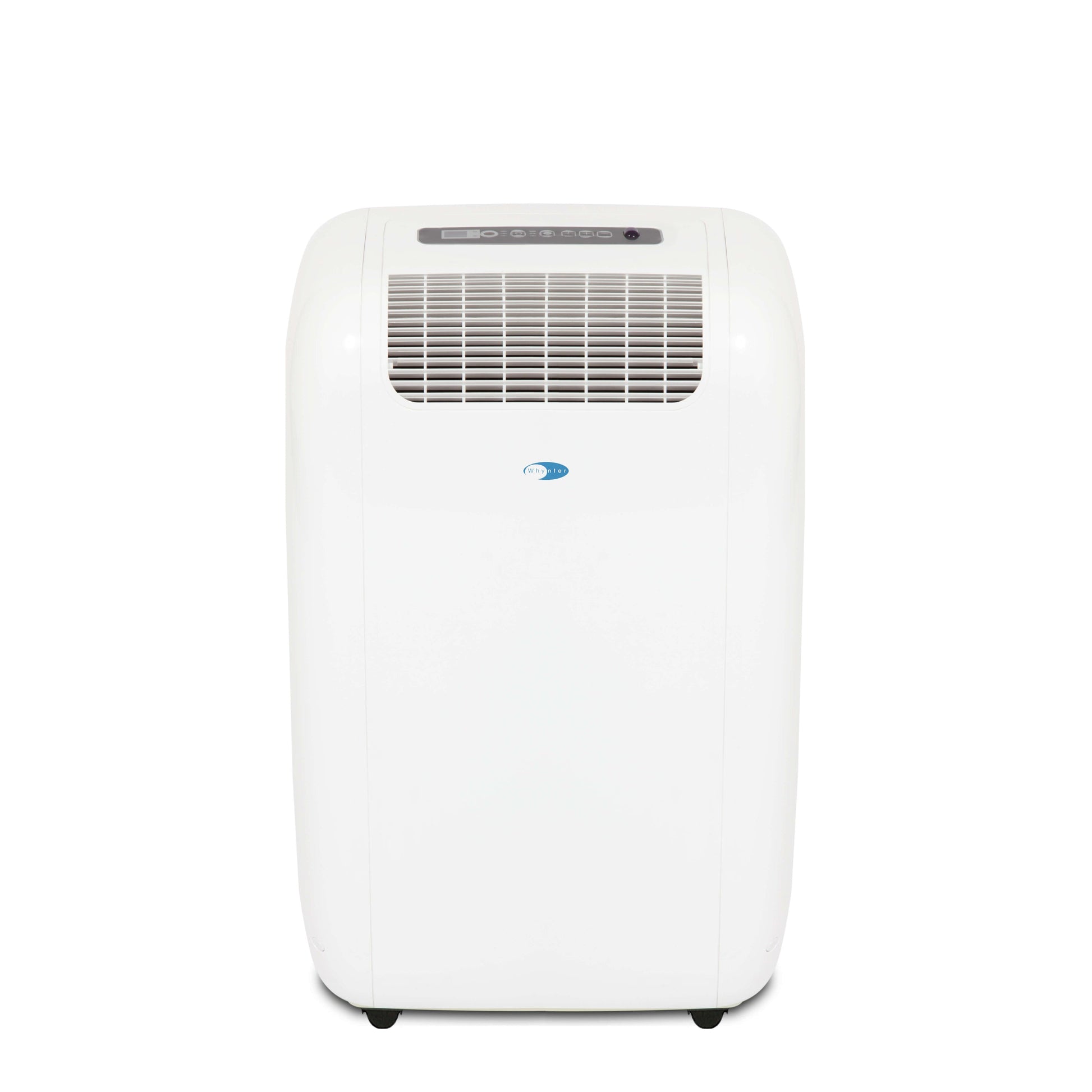

The Whynter CoolSize 10000 BTU Compact Portable Air Conditioner is the ideal space-constrained climate-control solution. Designed with a compact modern style and a rounded child-friendly profile, the unit easily blends in with any room design and is ideal for a kid’s room. This compact, yet powerful portable air conditioner can also function as a 70-pint dehumidifier to remove excess humidity from the air, allowing the ambient air to feel even cooler and improving air comfort.
Eco-Friendly
With this Eco-friendly CFC-free, lead-free and high energy efficiency portable air conditioner, you can stay cool while keeping with better environmental standards and reducing energy consumption.
Hassle-free operation
The Whynter ARC-101CW portable air conditioner features a patented advance auto drain technology, which uses and recycles moisture collected during the cooling process to produce cool air. Furthermore, direct drain option allows you to continuously use the unit year-round when the dehumidifying function may face a heavier work load.
Automatic Restart
The auto restart function stores your selected settings so that in the event of a power interruption, the portable air conditioner will restart just as before when the power comes back on.

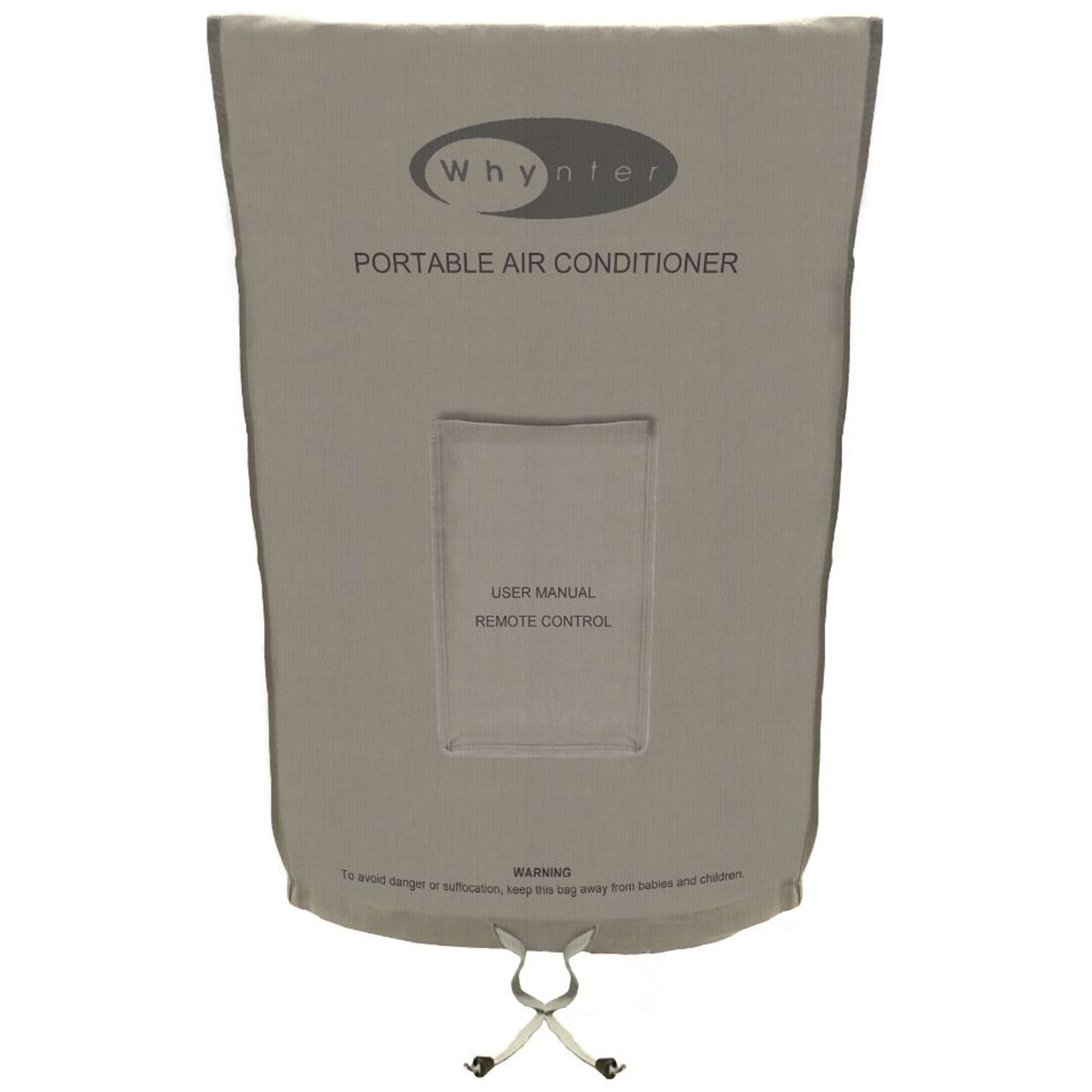

Storage cover bag
Comes with a protective cover with pocket that will protect your portable AC unit plus store your exhaust hose, window kit, remote control and user manual when not in use. This protective cover will keep dust and dirt from collecting on the unit while it is in storage.
Useful features
Equipped with a remote control that can easily control the speed, temperature, timer and dehumidifier settings even from a distance, the Whynter ARC-101CW also comes with rolling casters that will allow you to move the portable air conditioner room to room.
This unit can cool up to a 300 sq. ft. space (ambient temperature and humidity may influence optimum performance).
Additional information
ASHRAE BTU |
10,000 BTU |
---|---|
Color |
White |
Coverage Sq. Ft. |
300 sq. ft. |
Dehumidifying Capacity |
70 pints/ day |
Exhaust Hose Length |
Max. 59" |
Fan Speed |
3 speed |
Filter Type |
Carbon air filter and washable pre-filter |
Heat Mode |
No |
Hose System |
Single Hose |
Louver Type |
Fixed |
Maximum Power Consumption |
1000W / 9.4A |
Noise level (dBA) |
< 55 |
Pump Feature |
No |
Refrigerant |
R-410A |
Replacement Filter |
ARC-CF-101CW |
Replacement Hose |
ARC-EH-TYPE-101 |
Replacement Window Kit |
ARC-WK-SINGN |
Storage Bag |
Yes |
Temperature Range |
61°F – 89°F |

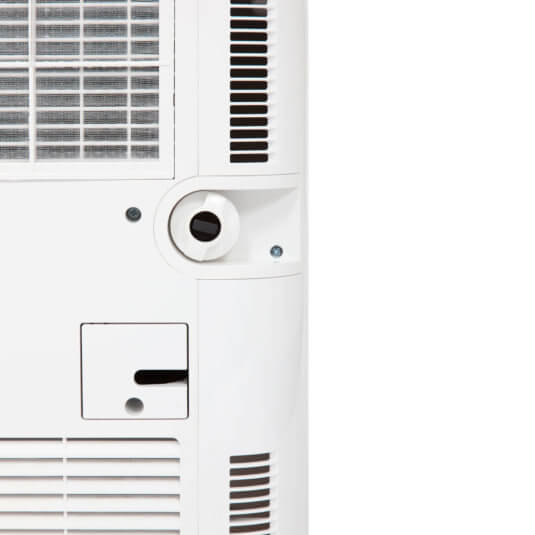

Upper Gravity Drain Port |
Yes |
Window Kit Length |
6.5" W x 20" (min)/ 46" (max) L |
SACC BTU |
5,214.9 BTU |
Unit Dimensions |
17" W x 14" D x 28" H |
CEER |
6.18 |
Features and Specifications
● Frost White color
● 10,000 BTU Cooling
● ECO-FRIENDLY CFC free GREEN R-410A refrigerant
● Lead free RoHS compliant components
● Patented auto drain function fully exhausts all condensate automatically in most environments
● Three operational modes: Cool, Dehumidify, and Fan

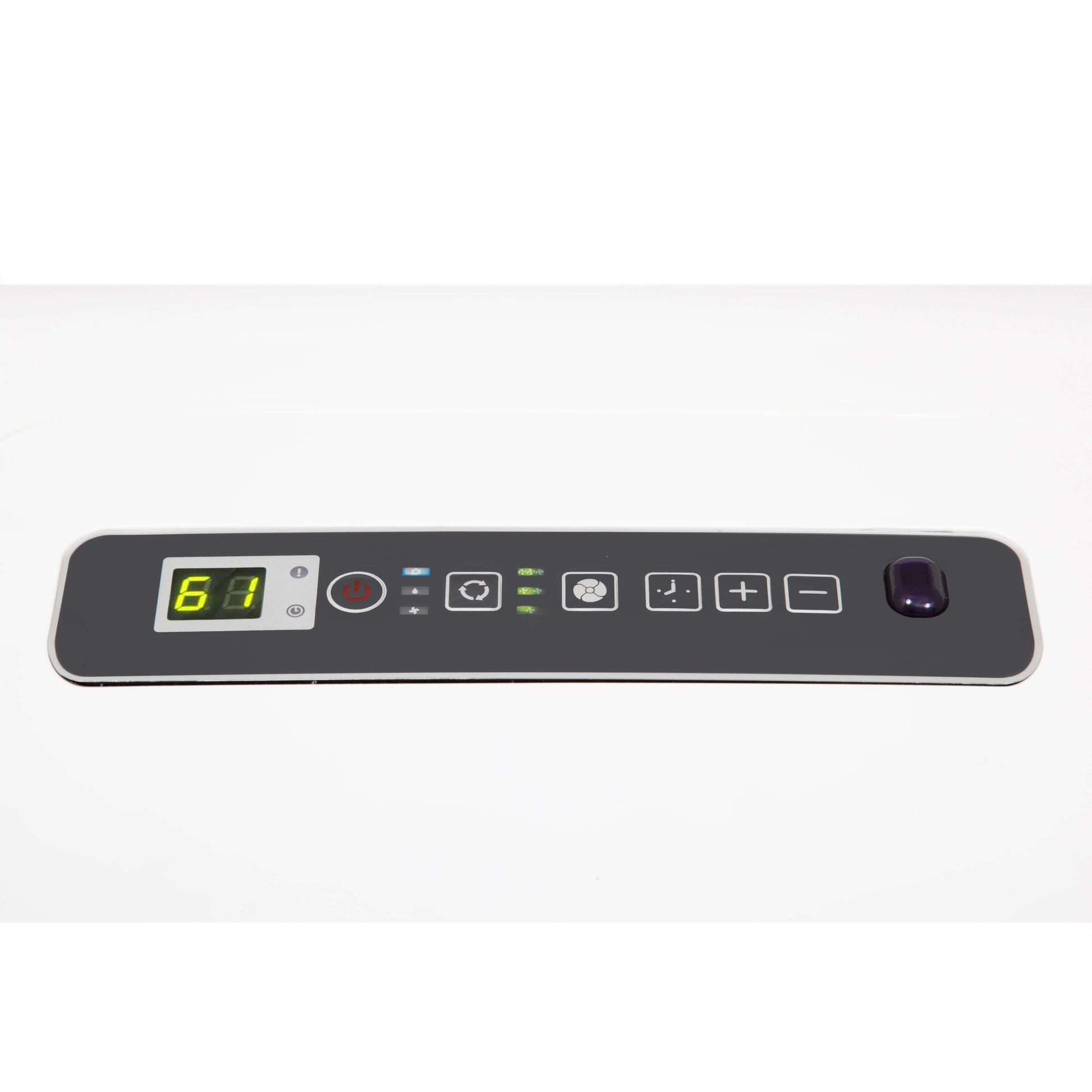

● Digital and remote control
● LCDI (Leakage-Current Detection and Interruption) plug
● Dehumidifying Capacity: 70 Pts / day

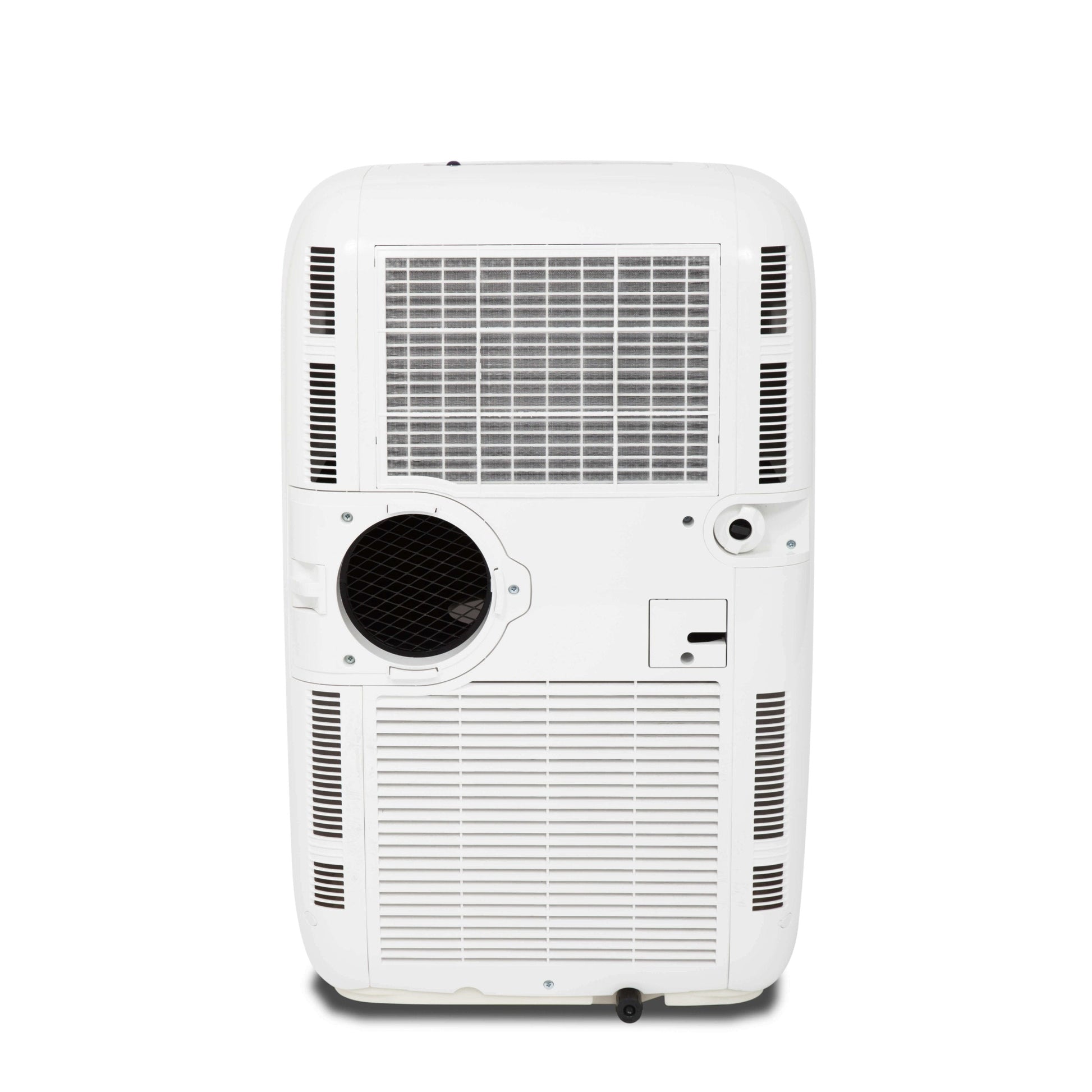

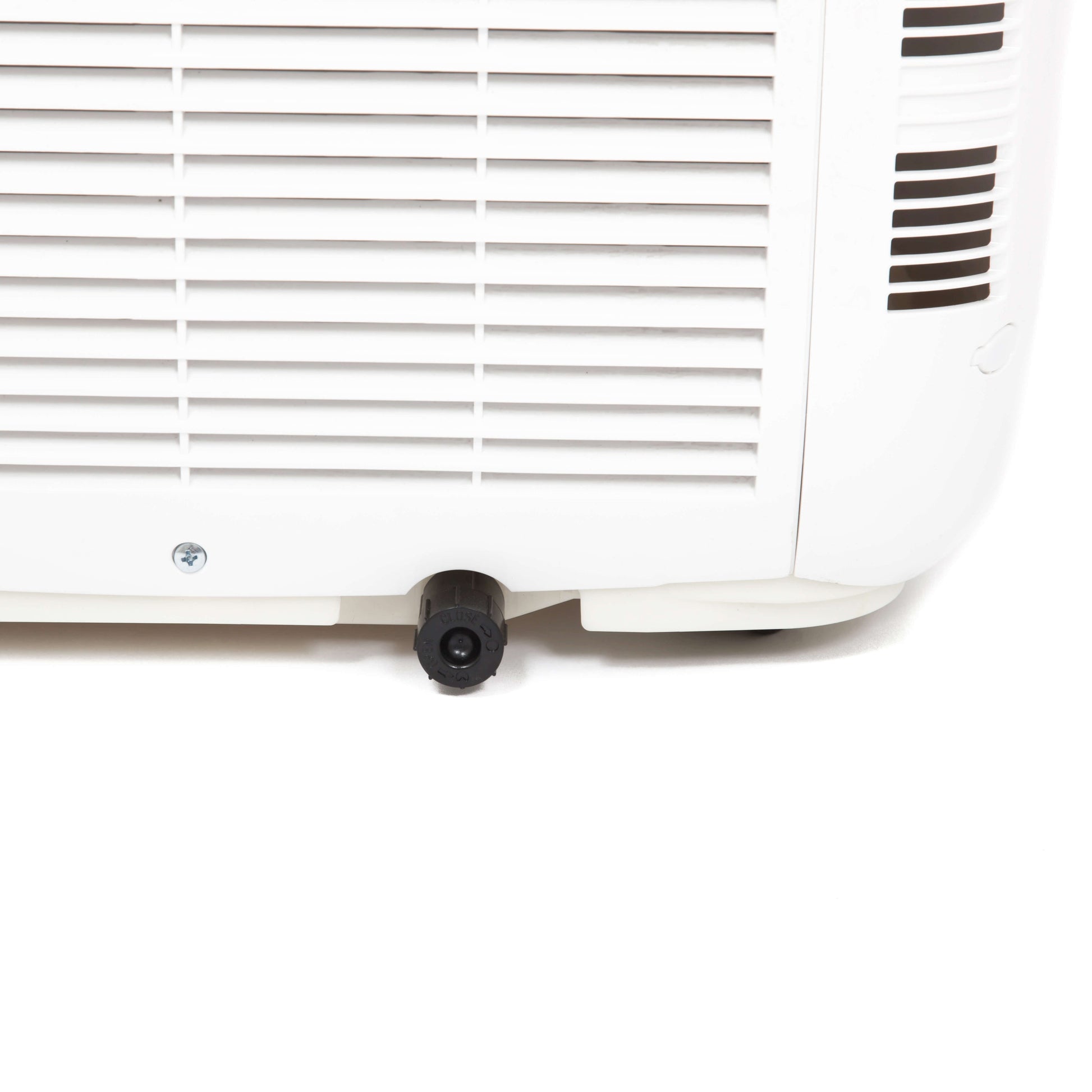

● Upper and lower drain ports for continuous operation
● Designed to provide quiet and efficient cooling to any room, with no permanent installation
● 3 speed fan
● Equipped with an Activated carbon filter and washable pre-filter
● Full thermostatic control (61°F – 89°F)

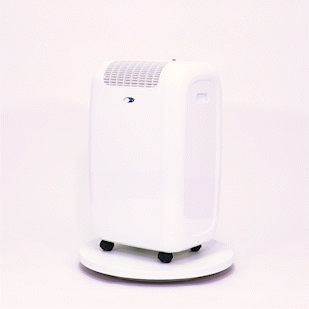

● Casters for easy mobility
● 24 hour programmable timer
● Noise level (dBA): <55
● CEER: 6.18
● Auto restart after power outage
● Storage cover bag with pocket
● Extendable exhaust hose (up to 59″)
● Upgraded Plastic window kit included
● Exhaust Hose: 5.5″ diameter
● Hose Connectors: 5.5″ diameter with 5.0″ diameter reducer
● Fixture and Window Kit: 5.0″ diameter
● Window Kit: 6.5″ W x 20″ (min)/ 46″ (max) L
● Storage cover bag with pocket
● Air Flow (at high speed): 264m3/h / 145CFM
● Maximum cooling power consumption: 1000W / 9.4A
● Power supply: 115 V / 60Hz / 1 Phase

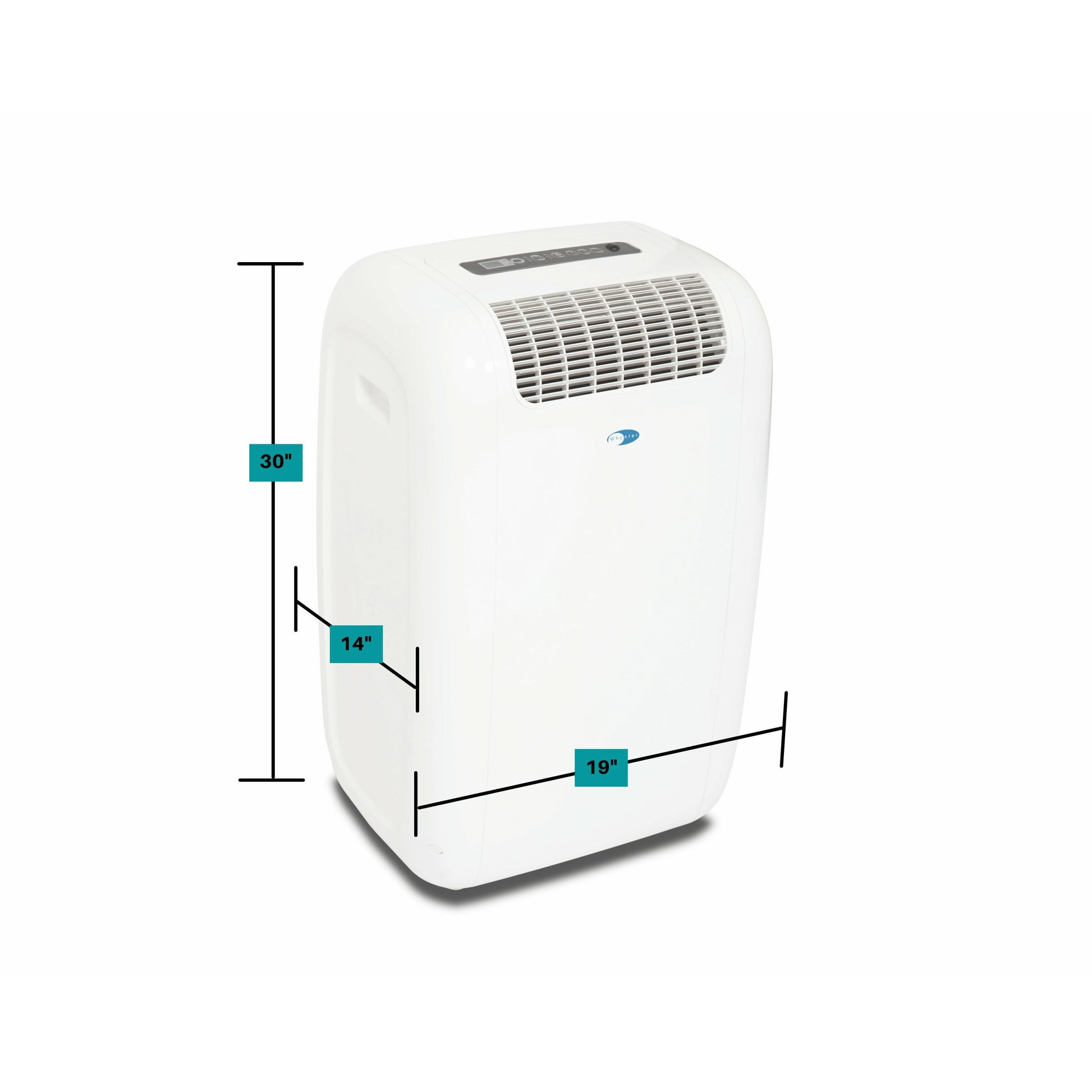

● Unit dimensions: 14″ W x 19″ D x 30″ H
● Package dimensions: 16″ L x 24″ W x 31″ H
● Net weight: 53 lbs
● Gross weight: 68 lbs
● UL listed
● UPC 850956003873
*This unit comes with one year warranty and three year warranty on the compressor.
Support
Accessories
Intake/Exhaust hose: Based on the version of the portable air conditioner you have, you may need a 5.0″ or 5.5″ diameter hose and/or connector(s) listed below. Please make sure to measure your existing hose before ordering additional accessories.
NOTE: Please note that we do not recommend extending the exhaust hose(s) more than 9 feet long.
ARC-EH-TYPE-101
(Whynter Intake / Exhaust hose 5.5″ diameter)
Ambient Stores
Window Slide Bars: ARC-WK-SINGN
Whynter Plastic Window Kit 6.5″ W x 20″ L (minimum), 46″ (maximum)
Available at:
Ambient Stores
Amazon.com
Activated Carbon Filter: ARC-CF-101CW
Whynter Activated Carbon Filter
Available at:
Ambient Stores
Amazon.com
Storage Bag: ARC-STRGBG-B
Whynter portable air conditioner storage bag
Available at:
Ambient Stores
Optional Lower Drain Bucket: ARC-DB
Whynter optional drain bucket for manual draining from lower drain port
Available at:
Ambient Stores
Amazon.com
Optional Upper Drain Hose: ARC-TYPN-UDPH
Whynter optional upper drain hose for continuous gravity drainage setup
Available at:
Ambient Stores
Complete Accessories Set: ARC-ACC-SISETCW-V2
Complete Ventilation Set for ARC-101CW
Available at:
Ambient Stores
